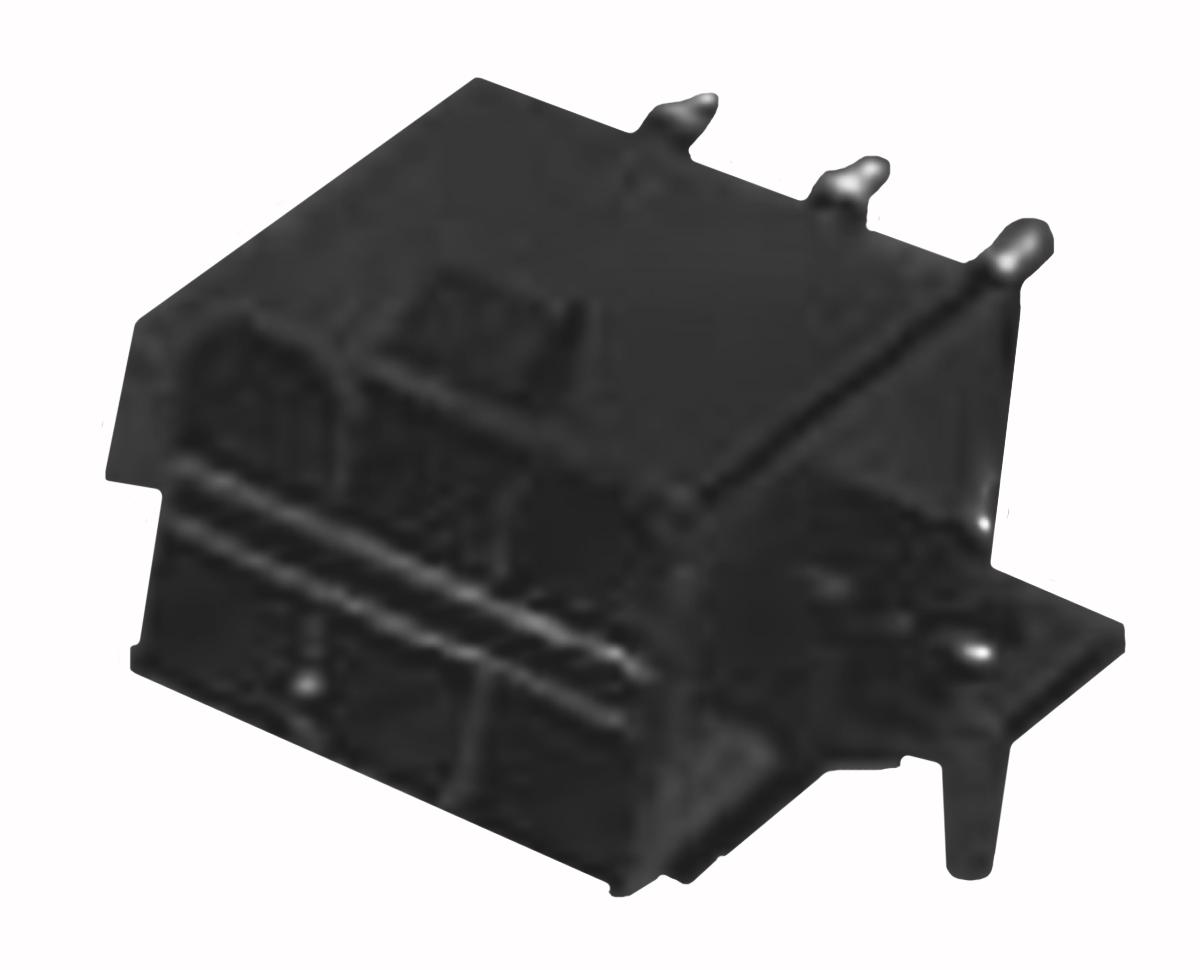

Molex Mini-Fit TPA Series, Series Number 30070, 4.2mm Pitch 16 Way 2 Row Shrouded Right Angle PCB Header, Through Hole

15-97-8162 Molex Mini-Fit TPA Series, Series Number 30070, 4.2mm Pitch 16 Way 2 Row Shrouded Right Angle PCB Header, Through Hole
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
13.0A
Mounting Type:
Through Hole
Series:
Mini-Fit TPA
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Tin
Pitch:
4.2mm
Number of Contacts:
16
Contact Material:
Brass
HTSUS:
8536.69.4040
Package:
Tray
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Mini-Fit TPA Series Series Number 30070 4.2mm Pitch 16 Way 2 Row Shrouded Right Angle PCB Header Through Hole manufactured by Molex. The manufacturer part number is 15-97-8162. It is supplied as shrouded. The product has a current rating of 13.0a. The product is available in through hole configuration. The product mini-fit tpa, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality tin is used as contact plating material. Moreover, the product is 4.2mm. The product contains 16 contacts. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.69.4040. It is shipped in tray package . The product is rohs non-compliant. In addition, it is reach info available upon request. Its typical moisture sensitivity level is vendor undefined. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
