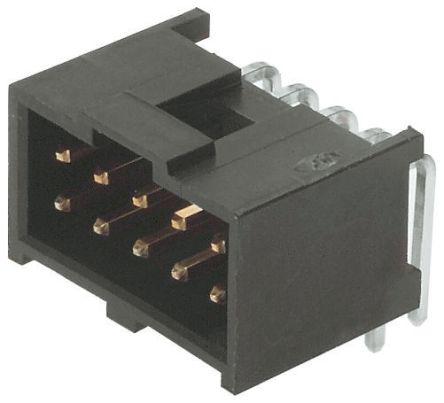

Molex C-GRID III Series, Series Number 90130, 2.54mm Pitch 20 Way 2 Row Shrouded Right Angle PCB Header, Through Hole

90130-3120 Molex C-GRID III Series, Series Number 90130, 2.54mm Pitch 20 Way 2 Row Shrouded Right Angle PCB Header, Through Hole

(0)

Product Information

Number of Contacts:

Current Rating:

Mounting Type:

Through Hole

Voltage Rating:

350 V ac/dc

Series:

C-Grid III

Body Orientation:

Right Angle

Termination Method:

Solder

Shrouded:

Shrouded

Number of Rows:

Pitch:

2.54mm

Contact Material:

Brass

Type:

Wire to Board

Checking for live stock

This is C-GRID III Series Series Number 90130 2.54mm Pitch 20 Way 2 Row Shrouded Right Angle PCB Header Through Hole manufactured by Molex. The manufacturer part number is 90130-3120. The product contains 20 contacts. The product has a current rating of 3a. The product is available in through hole configuration. Moreover, the product has a nominal 350 v ac/dc voltage rating. The product c-grid iii, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It is shrouded . It comes in 2 of rows. Moreover, the product is 2.54mm. The product is made from sturdy brass materials. It comes in wire to board configuration. It has 3d cad model CAD drawing . It carries [Serial Number] serial number.

Datasheet(Technical Reference)

Line Drawing(Technical Reference)

C-Grid lll Dual Row Shrouded Header Drawing(Technical Reference)
