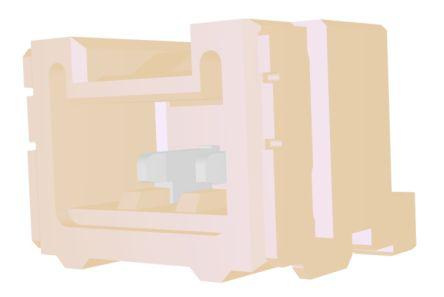

Molex Micro-Lock Series, Series Number 504195, 1.25mm Pitch 2 Way 1 Row Shrouded Right Angle PCB Header, Surface Mount

504195-0270 Molex Micro-Lock Series, Series Number 504195, 1.25mm Pitch 2 Way 1 Row Shrouded Right Angle PCB Header, Surface Mount
Molex

Product Information

Number of Contacts:
2
Current Rating:
1.5A
Mounting Type:
Surface Mount
Voltage Rating:
50 V
Series:
Micro-Lock
Body Orientation:
Right Angle
Termination Method:
Solder
Shrouded:
Shrouded
Number of Rows:
1
Pitch:
1.25mm
Contact Material:
Brass
Type:
Wire to Board
Series Number:
504195
RoHs Compliant
Checking for live stock

This is Micro-Lock Series Series Number 504195 1.25mm Pitch 2 Way 1 Row Shrouded Right Angle PCB Header Surface Mount manufactured by Molex. The manufacturer part number is 504195-0270. The product contains 2 contacts. The product has a current rating of 1.5a. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v voltage rating. The product micro-lock, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It is shrouded . It comes in 1 of rows. Moreover, the product is 1.25mm. The product is made from sturdy brass materials. It comes in wire to board configuration. It carries [Serial Number] serial number.

pdf icon
Micro-Lock 1.25mm Pitch SMT Wire-to-Board Positive Lock System - Brochure(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
Datasheet(Technical Reference)
pdf icon
Micro-Lock 1.25 Wire to Board Connector Single SMT Right Angle Plug Header - Drawing(Technical Reference)
