Current Rating:
3A
Mounting Type:
Through Hole
Series:
Quickie
Body Orientation:
Straight
Termination Method:
Solder
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.54mm
Number of Contacts:
40
Contact Material:
Phosphor Bronze
Manufacturer Standard Lead Time:
6 Weeks
Contact Finish - Mating:
Gold, GXT™
Style:
Board to Cable/Wire
Detailed Description:

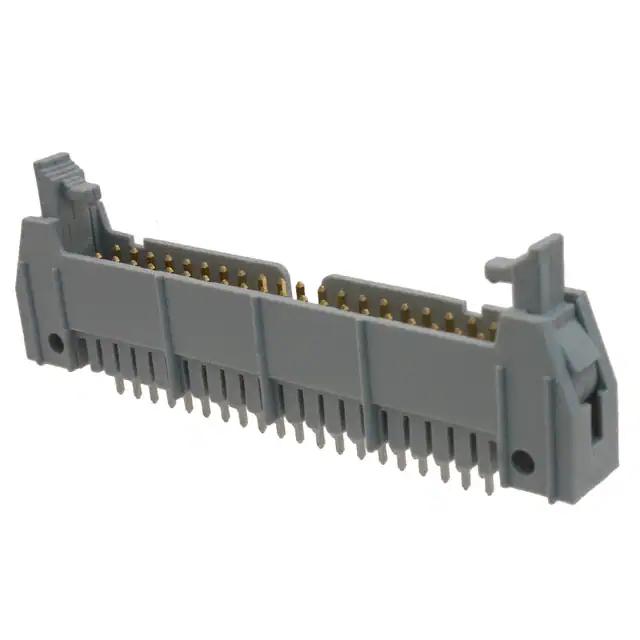

40 Positions Header Connector 0.100" (2.54mm) Through Hole Gold, GXT™
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
40
Contact Length - Post:
0.114" (2.90mm)
Insulation Height:
0.685" (17.40mm)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Standard Package:
7
Contact Shape:
Square
Manufacturer:
Amphenol FCI
Insulation Color:
Gray
Material Flammability Rating:
UL94 V-0
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.228" (5.80mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Latch Lock/Eject Hooks, Short
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole
Series:
Quickie™
Packaging:
Tube
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Other Names:
609-4497
71918-240LF-ND
71918240LF
Insulation Material:
Thermoplastic, Glass Filled
Contact Material:
Phosphor Bronze
