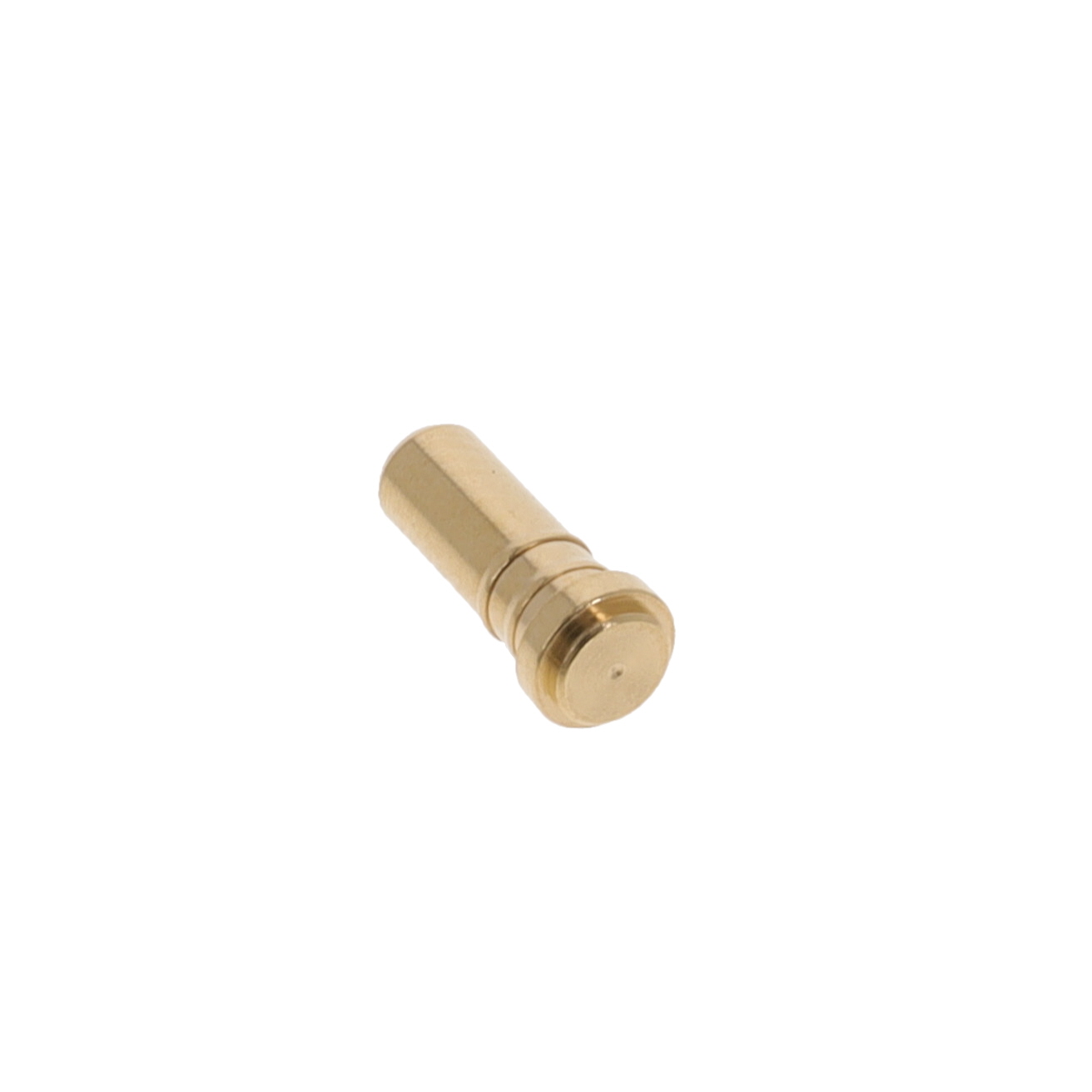

Mill-Max Manufacturing Corp. 1959-1-00-15-00-00-03-0

1959-1-00-15-00-00-03-0 Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

Product Information

Length - Above Flange:
0.016" (0.41mm)
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Pin Size - Above Flange:
0.090" (2.29mm) Dia
Material - Insulation:
-
Termination:
Press-Fit
Flange Diameter:
0.125" (3.18mm)
Length - Overall:
0.288" (7.32mm)
Contact Finish Thickness:
10.0µin (0.25µm)
REACH Status:
REACH Unaffected
Terminal Type:
PC Pin
Manufacturer:
Mill-Max Manufacturing Corp.
Insulation Color:
-
Mounting Hole Diameter:
0.098" (2.49mm)
Contact Finish:
Gold
Length - Below Flange:
0.242" (6.15mm)
Insulation:
Non-Insulated
Board Thickness:
-
standardLeadTime:
5 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
1959
Pin Size - Below Flange:
0.094" (2.39mm) Dia
Packaging:
Bulk
Terminal Style:
Single End
ECCN:
EAR99
Base Product Number:
1959-1
Contact Material:
Brass Alloy
Checking for live stock

This is manufactured by Mill-Max Manufacturing Corp.. The manufacturer part number is 1959-1-00-15-00-00-03-0. It has 0.016" (0.41mm) length above flange. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. While above the flange, the pin has 0.090" (2.29mm) dia size. The product features press-fit termination style. The flange diameter is 0.125" (3.18mm). The product has an integral 0.288" (7.32mm) overall length. It has 10.0µin (0.25µm) of contact finishing thickness. In addition, it is reach unaffected. The terminal is a pc pin type. The mill-max manufacturing corp.'s product offers user-desired applications. The given diameter of mounting hole is 0.098" (2.49mm). Furthermore, the product is galvanized with excellent gold contact finishing. The product has a 0.242" (6.15mm) length below flange. Insulation Option: non-insulated. It has a long 5 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product 1959, is a highly preferred choice for users. The pin below the flange has 0.094" (2.39mm) dia size. In addition, bulk is the available packaging type of the product. Features single end terminals. The product is designated with the ear99 code number. Moreover, it corresponds to 1959-1, a base product number of the product. The product is made from sturdy brass alloy materials.
