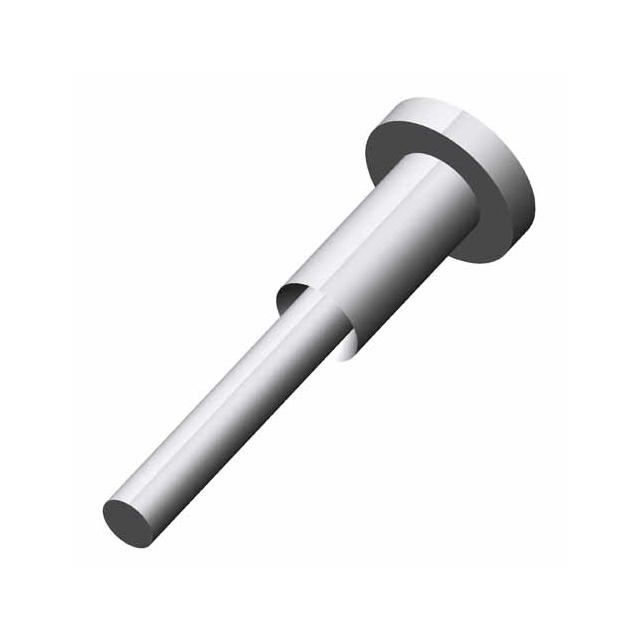

Harwin Inc. H2106B01

H2106B01 Harwin Inc.
Harwin Inc.

Product Information

Length - Above Flange:
-
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Pin Size - Above Flange:
-
Material - Insulation:
-
Termination:
Solder
Flange Diameter:
0.094" (2.39mm)
Length - Overall:
0.305" (7.75mm)
Contact Finish Thickness:
-
Insulation Color:
-
REACH Status:
REACH Unaffected
Terminal Type:
PC Pin
Package:
Bulk
Mounting Hole Diameter:
0.052" ~ 0.056" (1.32mm ~ 1.42mm)
Contact Finish:
Tin
Length - Below Flange:
0.285" (7.24mm)
Insulation:
Non-Insulated
Board Thickness:
0.094" (2.39mm)
standardLeadTime:
10 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
-
Pin Size - Below Flange:
0.032" (0.81mm) Dia
Terminal Style:
Single End
ECCN:
EAR99
Base Product Number:
H2106
Contact Material:
Brass
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is H2106B01. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. The product features solder termination style. The flange diameter is 0.094" (2.39mm). The product has an integral 0.305" (7.75mm) overall length. In addition, it is reach unaffected. The terminal is a pc pin type. It is shipped in bulk package . The given diameter of mounting hole is 0.052" ~ 0.056" (1.32mm ~ 1.42mm). Furthermore, the product is galvanized with excellent tin contact finishing. The product has a 0.285" (7.24mm) length below flange. Insulation Option: non-insulated. Moreover, 0.094" (2.39mm) is the given board thickness. It has a long 10 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The pin below the flange has 0.032" (0.81mm) dia size. Features single end terminals. The product is designated with the ear99 code number. Moreover, it corresponds to h2106, a base product number of the product. The product is made from sturdy brass materials.

pdf icon
H2106B01(Product Brief)
pdf icon
H21(05,06)B01 Drawing(2D Drawings)
pdf icon
Harwin REACH(Environmental Information)
