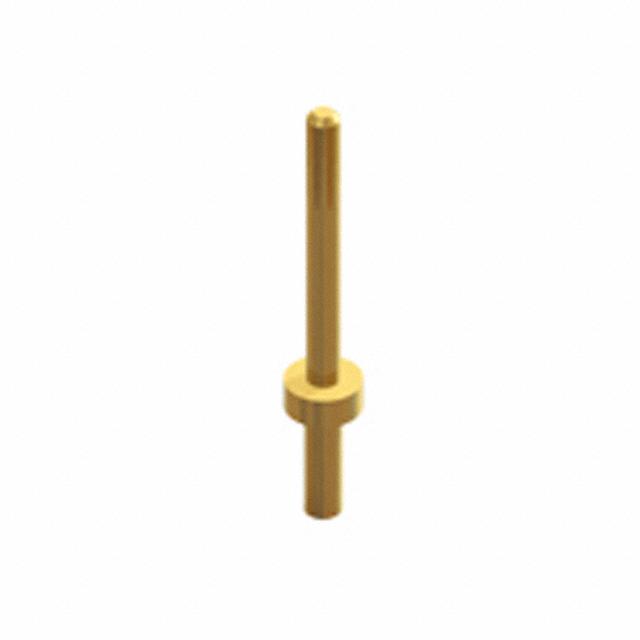

Keystone Electronics 1378-1

1378-1 Keystone Electronics
Keystone Electronics

Product Information

Length - Above Flange:
0.157" (3.99mm)
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Pin Size - Above Flange:
0.017" (0.43mm) Dia
Material - Insulation:
-
Termination:
Solder
Flange Diameter:
0.039" (0.99mm)
Length - Overall:
0.234" (5.94mm)
Contact Finish Thickness:
10.0µin (0.25µm)
Insulation Color:
-
REACH Status:
REACH Unaffected
edacadModel:
1378-1 Models
edacadModelUrl:
/en/models/1840051
Terminal Type:
PC Pin
Package:
Bulk
Mounting Hole Diameter:
0.022" (0.56mm)
Contact Finish:
Gold
Length - Below Flange:
0.061" (1.55mm)
Insulation:
Non-Insulated
Board Thickness:
0.032" (0.81mm)
standardLeadTime:
14 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
-
Pin Size - Below Flange:
0.019" (0.48mm) Dia
Terminal Style:
Single End
ECCN:
EAR99
Contact Material:
Brass
Checking for live stock

This is manufactured by Keystone Electronics. The manufacturer part number is 1378-1. It has 0.157" (3.99mm) length above flange. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. While above the flange, the pin has 0.017" (0.43mm) dia size. The product features solder termination style. The flange diameter is 0.039" (0.99mm). The product has an integral 0.234" (5.94mm) overall length. It has 10.0µin (0.25µm) of contact finishing thickness. In addition, it is reach unaffected. The terminal is a pc pin type. It is shipped in bulk package . The given diameter of mounting hole is 0.022" (0.56mm). Furthermore, the product is galvanized with excellent gold contact finishing. The product has a 0.061" (1.55mm) length below flange. Insulation Option: non-insulated. Moreover, 0.032" (0.81mm) is the given board thickness. It has a long 14 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The pin below the flange has 0.019" (0.48mm) dia size. Features single end terminals. The product is designated with the ear99 code number. The product is made from sturdy brass materials.
