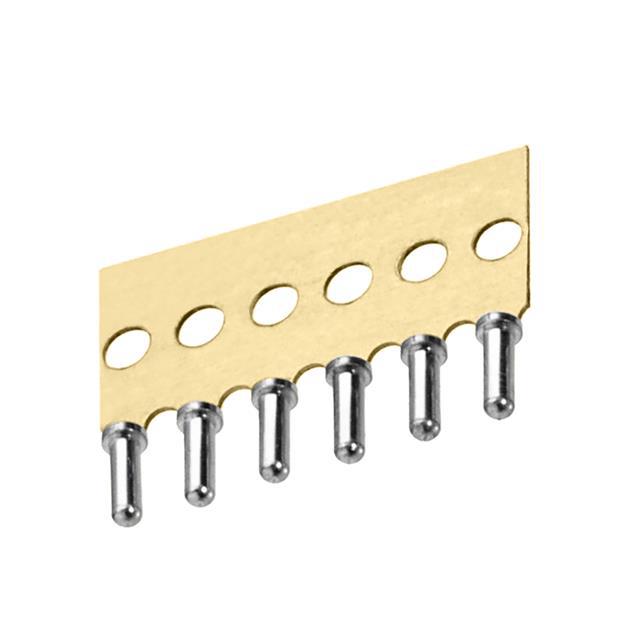

Harwin Inc. D01-9900601

D01-9900601 Harwin Inc.
D01-9900601
Harwin Inc.

Product Information

Accepts Square Pin Size:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Tail Diameter:
-
Contact Finish Thickness:
3.94µin (0.10µm)
Flange Diameter:
0.057" (1.45mm)
Socket Depth:
0.124" (3.15mm)
Length - Overall:
0.142" (3.61mm)
Tail Type:
No Tail
REACH Status:
REACH Unaffected
Manufacturer:
Harwin Inc.
Accepts Pin Diameter:
0.016" ~ 0.020" (0.41mm ~ 0.51mm)
Mounting Hole Diameter:
0.039" ~ 0.043" (0.99mm ~ 1.09mm)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
13 Weeks
Pin Hole Diameter:
0.043" (1.09mm)
Series:
-
Packaging:
Tube
ECCN:
EAR99
Base Product Number:
D01-990
Contact Material:
Beryllium Copper
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is D01-9900601. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It has 3.94µin (0.10µm) of contact finishing thickness. The flange diameter is 0.057" (1.45mm). The socket is 0.124" (3.15mm) deep. The product has an integral 0.142" (3.61mm) overall length. It is equipped with a no tail tail. In addition, it is reach unaffected. The harwin inc.'s product offers user-desired applications. Allow pins with a 0.016" ~ 0.020" (0.41mm ~ 0.51mm) diameters. The given diameter of mounting hole is 0.039" ~ 0.043" (0.99mm ~ 1.09mm). Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 13 weeks standard lead time. The diameter of the pin hole is 0.043" (1.09mm). In addition, tube is the available packaging type of the product. The product is designated with the ear99 code number. Moreover, it corresponds to d01-990, a base product number of the product. The product is made from sturdy beryllium copper materials.

pdf icon
Sub Miniature Sockets Spec Sheet(Datasheets)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
D01-990zzzz Drawing(Product Drawings)
