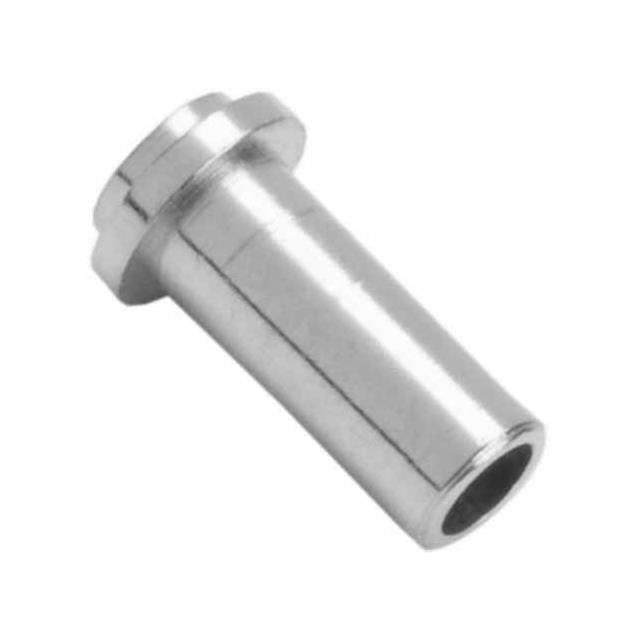

Harwin Inc. H3185-01

Enrgtech Part No: ET12035236
|
Manufacturer Part No:
H3185-01
|
Manufacturer: Harwin Inc.

Product Information

Accepts Square Pin Size:

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Tail Diameter:

Board Thickness:

Contact Finish Thickness:

5.90µin (0.150µm)

Flange Diameter:

0.125" (3.18mm)

Socket Depth:

0.140" (3.56mm)

Length - Overall:

0.236" (6.00mm)

Tail Type:

No Tail

title:

H3185-01

REACH Status:

REACH Unaffected

Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is H3185-01. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It has 5.90µin (0.150µm) of contact finishing thickness. The flange diameter is 0.125" (3.18mm). The socket is 0.140" (3.56mm) deep. The product has an integral 0.236" (6.00mm) overall length. It is equipped with a no tail tail. In addition, it is reach unaffected. The harwin inc.'s product offers user-desired applications. Allow pins with a 0.035" ~ 0.041" (0.89mm ~ 1.05mm) diameters. The given diameter of mounting hole is 0.086" ~ 0.090" (2.18mm ~ 2.29mm). Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). Has an 3.00n ~ 9.00n insertion force. It has a long 7 weeks standard lead time. The product features solder termination style. The product has -55°c ~ 125°c operating temperature range. In addition, bulk is the available packaging type of the product. The product is made from sturdy beryllium copper materials. Moreover, it corresponds to h3185, a base product number of the product. The product is designated with the ear99 code number.

H3185-01(Product Brief)

Harwin REACH(Environmental Information)

H3185 Drawing(Datasheets)

1.0mm P.C. Sockets Spec Sheet(Datasheets)

H3153-01(Other Related Documents)
