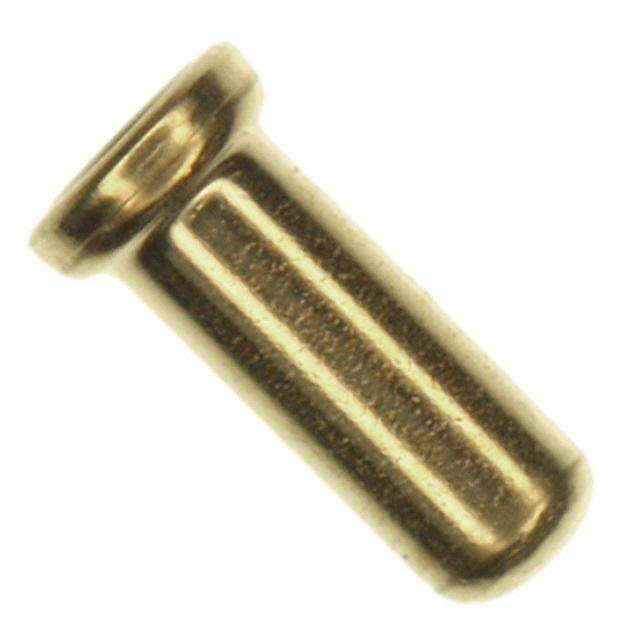

TE Connectivity AMP Connectors 380598-1

380598-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Accepts Square Pin Size:
-
HTSUS:
8536.90.4000
RoHS Status:
Not applicable
Tail Diameter:
-
Board Thickness:
0.156" (3.96mm)
Contact Finish Thickness:
30.0µin (0.76µm)
Flange Diameter:
0.125" (3.18mm)
Socket Depth:
0.145" (3.68mm)
Length - Overall:
0.262" (6.65mm)
Tail Type:
No Tail
REACH Status:
Vendor Undefined
edacadModel:
380598-1 Models
edacadModelUrl:
/en/models/293108
Manufacturer:
TE Connectivity AMP Connectors
Accepts Pin Diameter:
0.018" ~ 0.040" (0.46mm ~ 1.02mm)
Mounting Hole Diameter:
0.086" ~ 0.089" (2.18mm ~ 2.26mm)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Insertion Force:
0.12N ~ 0.34N
standardLeadTime:
14 Weeks
Pin Hole Diameter:
0.048" (1.22mm)
Features:
-
Series:
-
Termination:
Solder
Operating Temperature:
-55°C ~ 125°C
Packaging:
Bulk
ECCN:
EAR99
Base Product Number:
380598
Contact Material:
Beryllium Copper
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 380598-1. It is assigned with possible HTSUS value of 8536.90.4000. The product is not applicable. Moreover, 0.156" (3.96mm) is the given board thickness. It has 30.0µin (0.76µm) of contact finishing thickness. The flange diameter is 0.125" (3.18mm). The socket is 0.145" (3.68mm) deep. The product has an integral 0.262" (6.65mm) overall length. It is equipped with a no tail tail. In addition, it is vendor undefined. The te connectivity amp connectors's product offers user-desired applications. Allow pins with a 0.018" ~ 0.040" (0.46mm ~ 1.02mm) diameters. The given diameter of mounting hole is 0.086" ~ 0.089" (2.18mm ~ 2.26mm). Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). Has an 0.12n ~ 0.34n insertion force. It has a long 14 weeks standard lead time. The diameter of the pin hole is 0.048" (1.22mm). The product features solder termination style. The product has -55°c ~ 125°c operating temperature range. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 380598, a base product number of the product. The product is made from sturdy beryllium copper materials.
