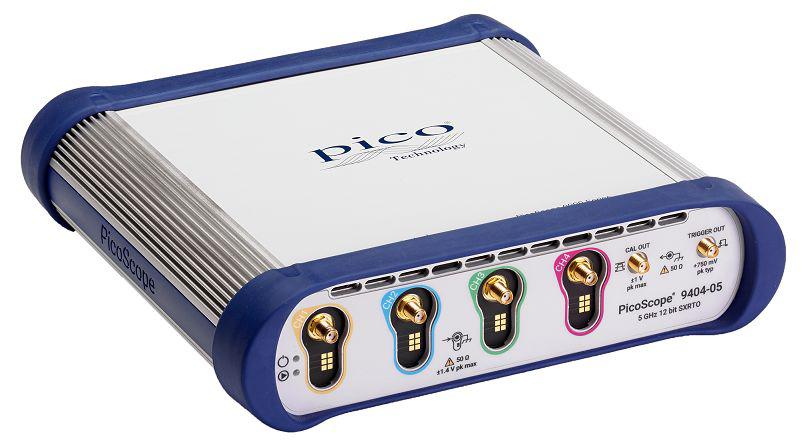

Pico Technology PicoScope 9404-16 CDR PC Based Oscilloscope, 16GHz, 4 Analogue Channels

Enrgtech Part No: ET24153668
|
Manufacturer Part No:
PicoScope 9404-16 CDR
|
Manufacturer: Pico Technology

PicoScope-9404-16-CDR Pico Technology PicoScope 9404-16 CDR PC Based Oscilloscope, 16GHz, 4 Analogue Channels

Product Information

Digital/Analogue:

Digital

Power Source:

AC Adapter

Minimum Time Base:

0.05ns/div

Series:

PicoScope 9000

Oscilloscope Form:

SXRTO

Vertical Resolution:

12 bit

Plug Type:

Universal

Oscilloscope Type:

PC Based

Bandwidth:

16GHz

Sample Rate Random:

1000 G samples/s

Memory Depth:

250kpts

Minimum Vertical Sensitivity:

10mV/div

Checking for live stock

The Pico Technology Picoscope 9404-16 CDR is a high-performance sampler-extended real-time oscilloscope specifically designed for high-speed digital and telecommunications testing. It features a massive 16 GHz bandwidth across four analogue channels. It includes a built-in clock and data recovery (CDR) module. The compact USB interface allows for easy portability and seamless PC integration. Its 12-bit resolution ensures highly accurate visualisation of complex waveforms.

Why Buy This Product?

This Pico Technology Picoscope 9404-16 CDR digital oscilloscope offers industry-leading bandwidth and precision for high-speed signal analysis. It simplifies complex testing with integrated clock recovery and intuitive software control.

Exceptional Precision: 12-bit resolution captures even the smallest signal details.
High-Speed Capacity: 16 GHz bandwidth supports data rates up to 11 Gb/s.
Integrated CDR: Recreates clock signals automatically to simplify jitter and eye diagram analysis.

Functional Highlights & Technical Specifications

Bandwidth: 16 GHz (16,000 MHz)
Channels: 4 high-bandwidth 50 Ω analogue inputs
Vertical Resolution: 12-bit high-definition ADC
Sampling Rate: 5 TS/s random equivalent-time sampling
Transition Time: 22 ps (10% to 90%)
CDR Performance: Clock and data recovery up to 8 Gb/s
Interface: USB 2.0 and LAN connectivity
Analysis Tools: Over 200 built-in masks for eye and pulse testing.

Datasheet - PicoScope 9404-16 CDR(Technical Reference)
