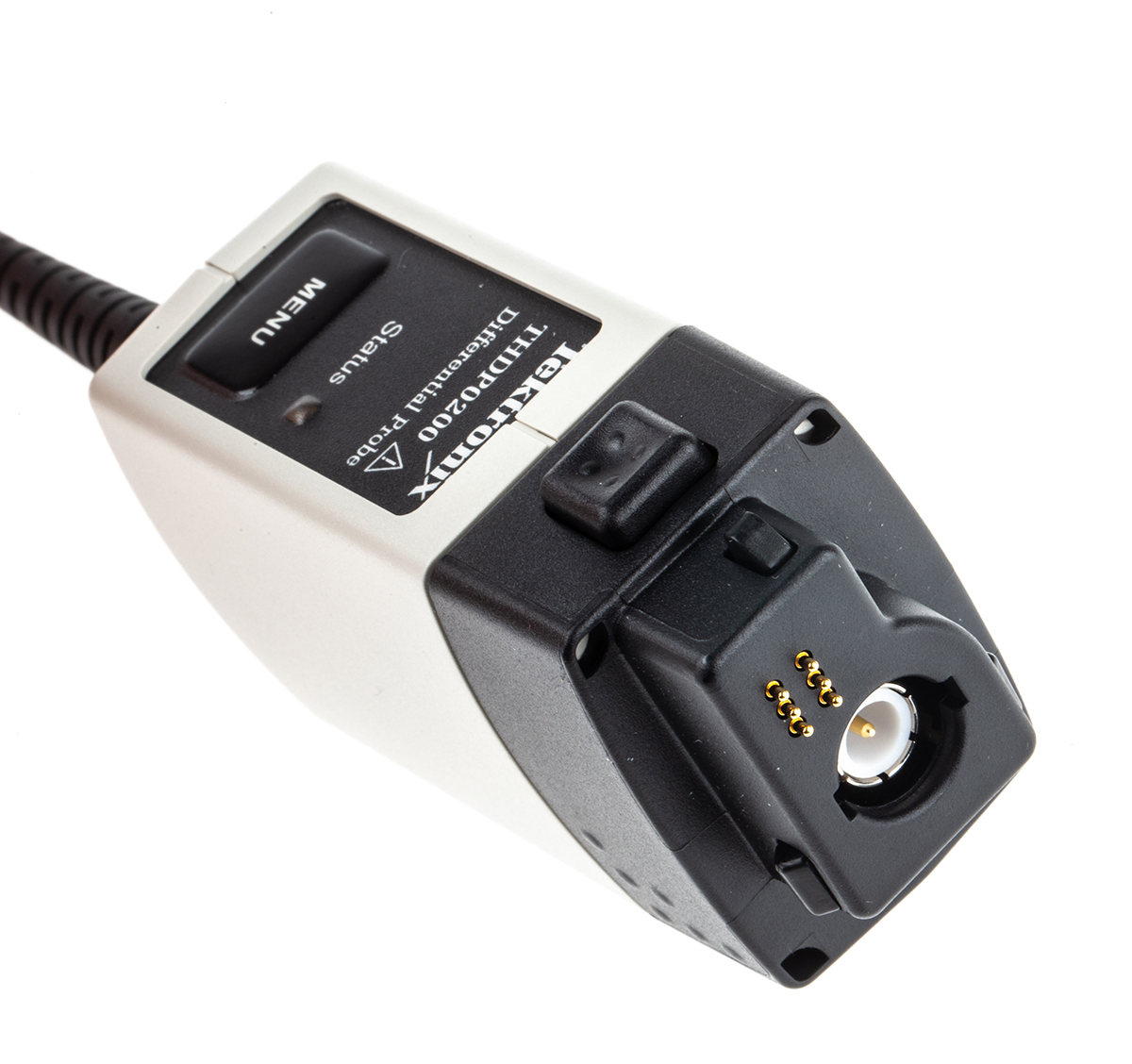

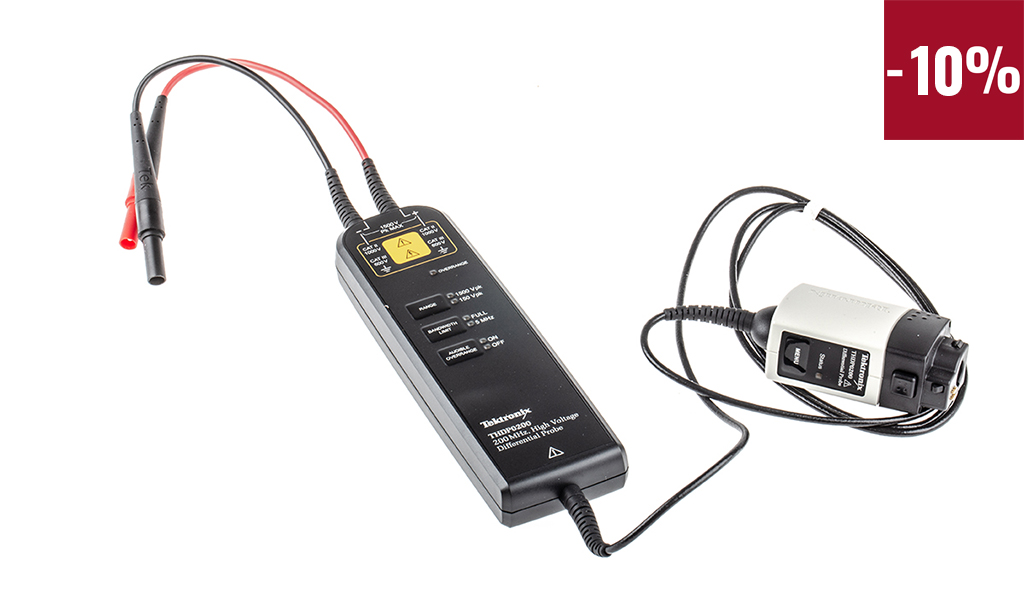

Tektronix THDP0200, Oscilloscope Probe, Probe Type: Differential, High Voltage 200MHz ±1500V

THDP0200 Tektronix , Oscilloscope Probe, Probe Type: Differential, High Voltage 200MHz ±1500V
THDP0200
THDP0200
ET13865742
Tektronix

Product Information

Probe Type:
Differential, High Voltage
Maximum Common Mode Input Voltage:
1.5kV
Attenuation:
1:50, 1:500
Safety Category Level:
CAT II, CAT III
Series:
THD
Model Number p:
THDP0200
Connector Type:
BNC
Safety Category:
CAT II 1000 V, CAT III 600V
Bandwidth:
200MHz
Rise Time:
1.8ps
Checking for live stock

The Tektronix THDP0200 is an advanced oscilloscope probe for high-performance differential voltage measurements in demanding electronic and electrical test environments. This precision probe offers exceptional capabilities, making it a valuable tool for engineers and technicians requiring accurate measurements of high-voltage differential signals with a bandwidth of up to 200MHz and a wide voltage range of ±1500V. Its ability to reject common-mode noise, wide voltage range, and high input impedance makes it a reliable choice for applications in industries such as power electronics, telecommunications, industrial automation, and research and development.

The Tektronix THDP0200, Oscilloscope Probe: Unique Features and Benefits

  • The THDP0200 is designed explicitly for differential voltage measurements, allowing users to capture the voltage difference between two signals while rejecting common-mode noise.
  • With a bandwidth of 200MHz, this probe can accurately capture high-frequency signals.
  • The probe offers an impressive voltage range of ±1500V, allowing it to handle high-voltage measurements.
  • It maintains a high input impedance, minimising the impact on the circuit under test.
  • The THDP0200 is designed to withstand demanding environments.

Application Versatility of the Tektronix THDP0200, Oscilloscope Probe, Probe Type: Differential, High Voltage 200MHz ±1500V

The Tektronix THDP0200 Oscilloscope Probe’s durable construction and user-friendly design, it is an essential asset for those working with high-voltage differential signals in demanding test and measurement environments, including:

  • Motor Drive Design
  • Tekvpi Interface (TMDP And THDP Series Probes)
  • Power Converter Design and Service
  • CRT Display Design
  • BNC Interface (P5200A Probes)
  • Floating Measurements
  • Switching Power Supply Design
  • Tekprobe Interface
  • Electronic Ballast Design
  • Power Device Evaluation
