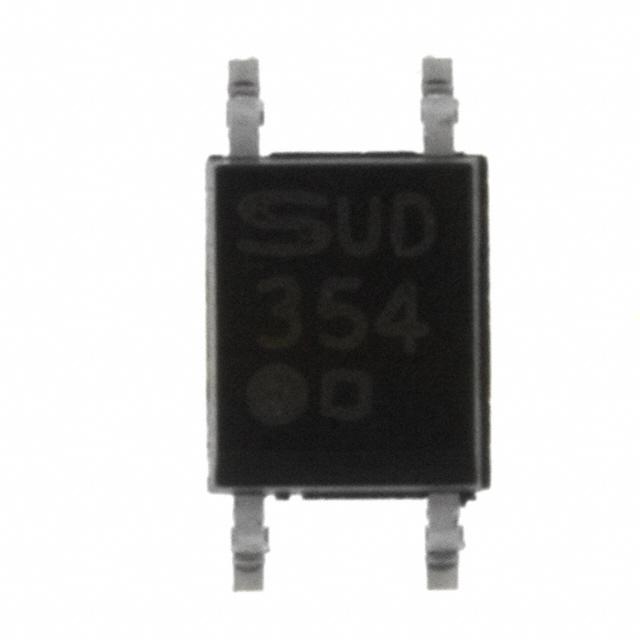

Sharp Microelectronics PC354NTJ000F

PC354NTJ000F Sharp Microelectronics
Sharp Microelectronics

Product Information

HTSUS:
8541.49.8000
Current - Output / Channel:
50mA
Vce Saturation (Max):
200mV
Operating Temperature:
-30°C ~ 100°C
Input Type:
AC, DC
Package / Case:
4-SMD, Gull Wing
Current - DC Forward (If) (Max):
50 mA
Current Transfer Ratio (Min):
20% @ 1mA
Current Transfer Ratio (Max):
400% @ 1mA
Rise / Fall Time (Typ):
4µs, 3µs
Output Type:
Transistor
Number of Channels:
1
Voltage - Output (Max):
80V
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Forward (Vf) (Typ):
1.2V
Voltage - Isolation:
3750Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
4-Mini-Flat
Turn On / Turn Off Time (Typ):
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Sharp Microelectronics. The manufacturer part number is PC354NTJ000F. It is assigned with possible HTSUS value of 8541.49.8000. It carries 50ma output or channel current. Feature a maximum Vce saturation of 200mv. The product has -30°c ~ 100°c operating temperature range. It carries ac, dc input type. Moreover, the product comes in 4-smd, gull wing. The maximum DC forward current of the product is 50 ma. It has a minimum current transfer ratio of 20% @ 1ma. Excellent efficiency with a maximum current transfer ratio of 400% @ 1ma. The typical rise and fall time of the product is 4µs, 3µs. Furthermore, it has atransistor output. It is supplied with 1 channels. While the maximum output voltage is 80v. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The typical forward voltage (Vf) of the product is 1.2v. 3750vrms of isolation voltage. The product is available in surface mount configuration. 4-mini-flat is the supplier device package value. The product is designated with the ear99 code number.

pdf icon
GP2(L,S) 04/Apr/2011(PCN Obsolescence/ EOL)
pdf icon
PC354NJ0000F(Datasheets)
