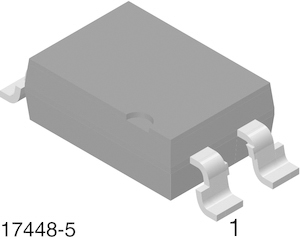

SMD-4 CPL 40-80% CTR -e3

SFH6156-1 SMD-4 CPL 40-80% CTR -e3
Vishay

Product Information

Maximum Forward Voltage:
1.65V
Output Device:
Phototransistor
Isolation Voltage:
5.3 kVrms
Mounting Type:
Surface Mount
Series:
SFH
Typical Rise Time:
2µs
Minimum Current Transfer Ratio:
40%
Maximum Current Transfer Ratio:
80%
Input Current Type:
DC
Number of Pins:
4
Number of Channels:
1
Package Type:
SMD
Maximum Input Current:
60 mA
Typical Fall Time:
2µs
RoHs Compliant
Checking for live stock

This is SMD-4 CPL 40-80% CTR -e3 manufactured by Vishay. The manufacturer part number is SFH6156-1. It also carries 1.65v of maximum forward voltage. Its output device includes phototransistor. It has 5.3 kvrms isolation voltage. The product is available in surface mount configuration. The product sfh, is a highly preferred choice for users. It has a typical 2µs rise time . In addition, it has a minimum 40% current transfer ratio . It has a maximum 80% current transfer ratio . Its input is of dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of smd. While its maximum input current includes 60 ma. It has a typical 2µs fall time .
