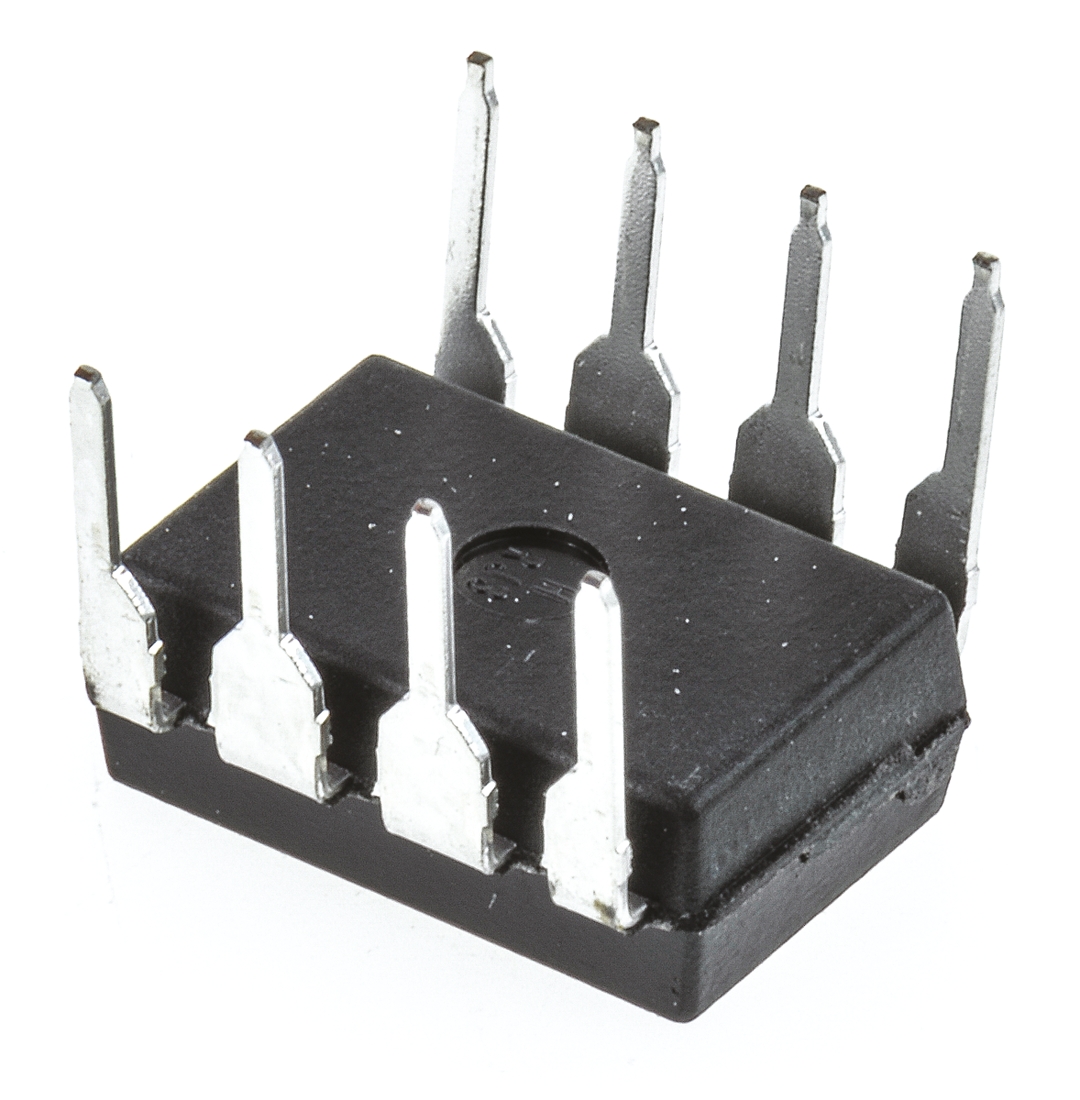

Broadcom HCPL-4504-000E DC Input Transistor Output Optocoupler, Through Hole, 8-Pin PDIP

HCPL-4504-000E Broadcom DC Input Transistor Output Optocoupler, Through Hole, 8-Pin PDIP
HCPL-4504-000E
Broadcom

Product Information

Maximum Forward Voltage:
1.7V
Output Device:
Transistor
Isolation Voltage:
5 kVrms
Mounting Type:
Through Hole
Series:
HCPL
Minimum Current Transfer Ratio:
26%
Maximum Current Transfer Ratio:
65%
Input Current Type:
DC
Package Type:
PDIP
Number of Channels:
1
Number of Pins:
8
Maximum Input Current:
25 mA
Logic Output:
Yes
RoHs Compliant
Checking for live stock

This is DC Input Transistor Output Optocoupler Through Hole 8-Pin PDIP manufactured by Broadcom. The manufacturer part number is HCPL-4504-000E. It also carries 1.7v of maximum forward voltage. Its output device includes transistor. It has 5 kvrms isolation voltage. The product is available in through hole configuration. The product hcpl, is a highly preferred choice for users. In addition, it has a minimum 26% current transfer ratio . It has a maximum 65% current transfer ratio . Its input is of dc type . The package is a sort of pdip. It is supplied with 1 channels. It is comprised of 8 pins. While its maximum input current includes 25 ma. It includes a logic output yes .

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search HCPL-4504-000E on website for other similar products.
We accept all major payment methods for all products including ET14154072. Please check your shopping cart at the time of order.
You can order Broadcom brand products with HCPL-4504-000E directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocouplers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Broadcom HCPL-4504-000E DC Input Transistor Output Optocoupler, Through Hole, 8-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on Broadcom HCPL-4504-000E DC Input Transistor Output Optocoupler, Through Hole, 8-Pin PDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14154072 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Broadcom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14154072.
Yes. We ship HCPL-4504-000E Internationally to many countries around the world.
