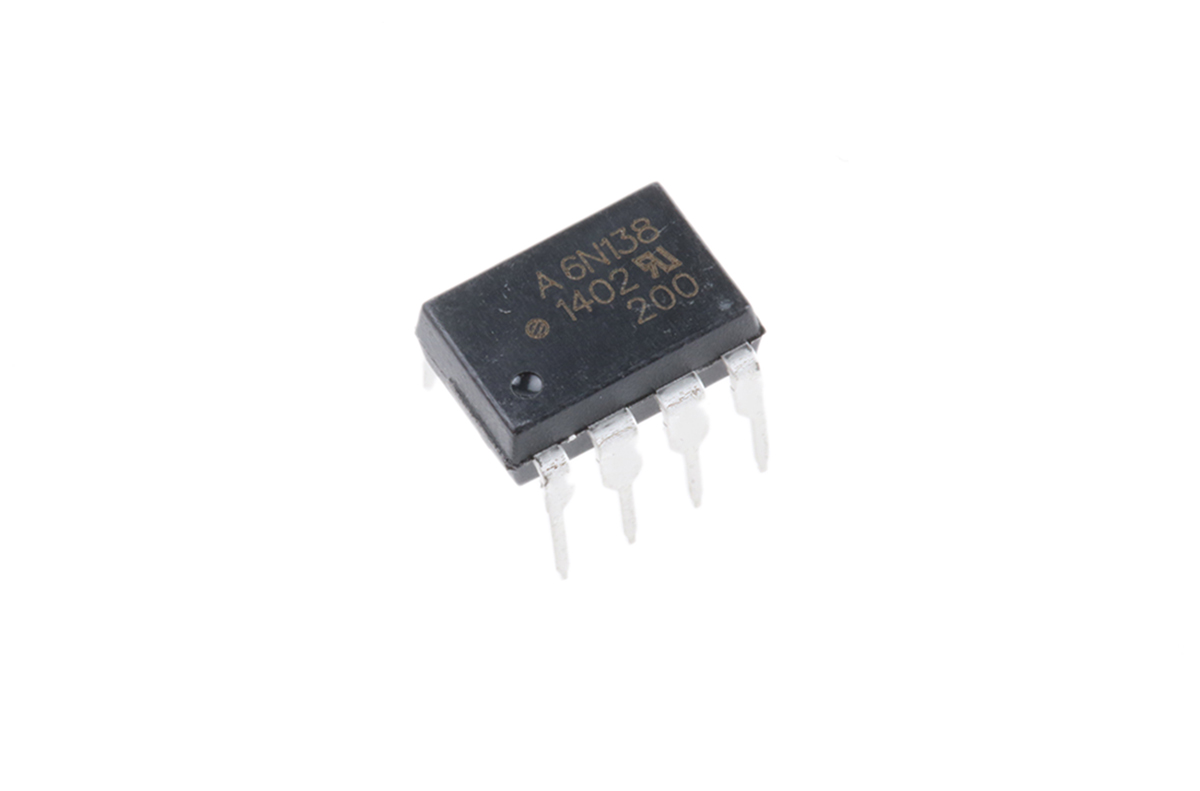

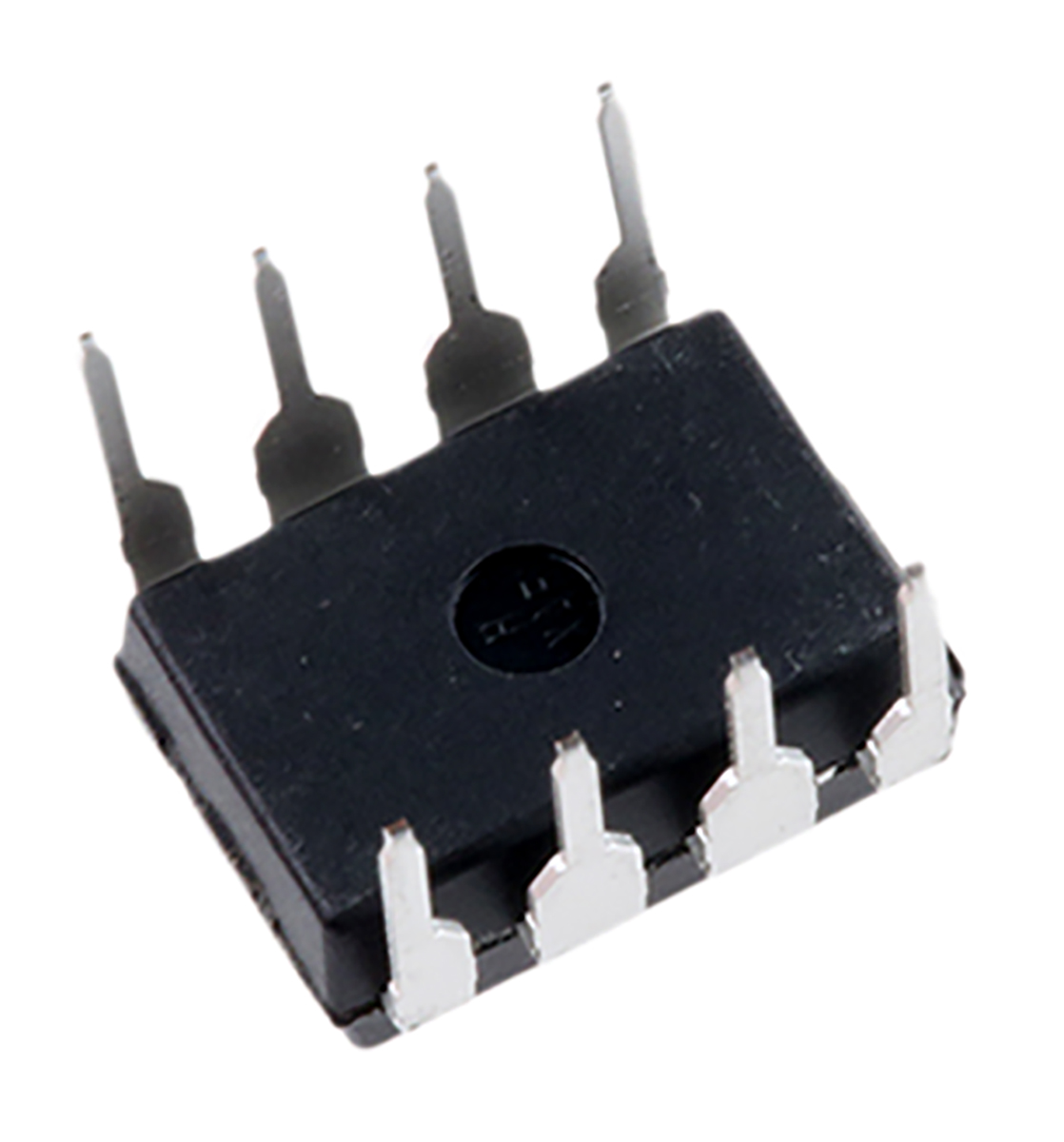

Broadcom 6N138-000E DC Input Darlington Output Optocoupler, Through Hole, 8-Pin PDIP

6N138-000E Broadcom  DC Input Darlington Output Optocoupler, Through Hole, 8-Pin PDIP
6N138-000E
Broadcom

Product Information

Maximum Forward Voltage:
1.7V
Output Device:
Darlington
Isolation Voltage:
3.75 kVrms
Mounting Type:
Through Hole
Series:
6N138
Minimum Current Transfer Ratio:
300%
Maximum Current Transfer Ratio:
2600%
Input Current Type:
DC
Package Type:
PDIP
Number of Channels:
1
Number of Pins:
8
Maximum Input Current:
20 mA
Logic Output:
Yes
RoHs Compliant
Checking for live stock

This is DC Input Darlington Output Optocoupler Through Hole 8-Pin PDIP manufactured by Broadcom. The manufacturer part number is 6N138-000E. It also carries 1.7v of maximum forward voltage. Its output device includes darlington. It has 3.75 kvrms isolation voltage. The product is available in through hole configuration. The product 6n138, is a highly preferred choice for users. In addition, it has a minimum 300% current transfer ratio . It has a maximum 2600% current transfer ratio . Its input is of dc type . The package is a sort of pdip. It is supplied with 1 channels. It is comprised of 8 pins. While its maximum input current includes 20 ma. It includes a logic output yes .

pdf icon
Datasheet(Technical Reference)
