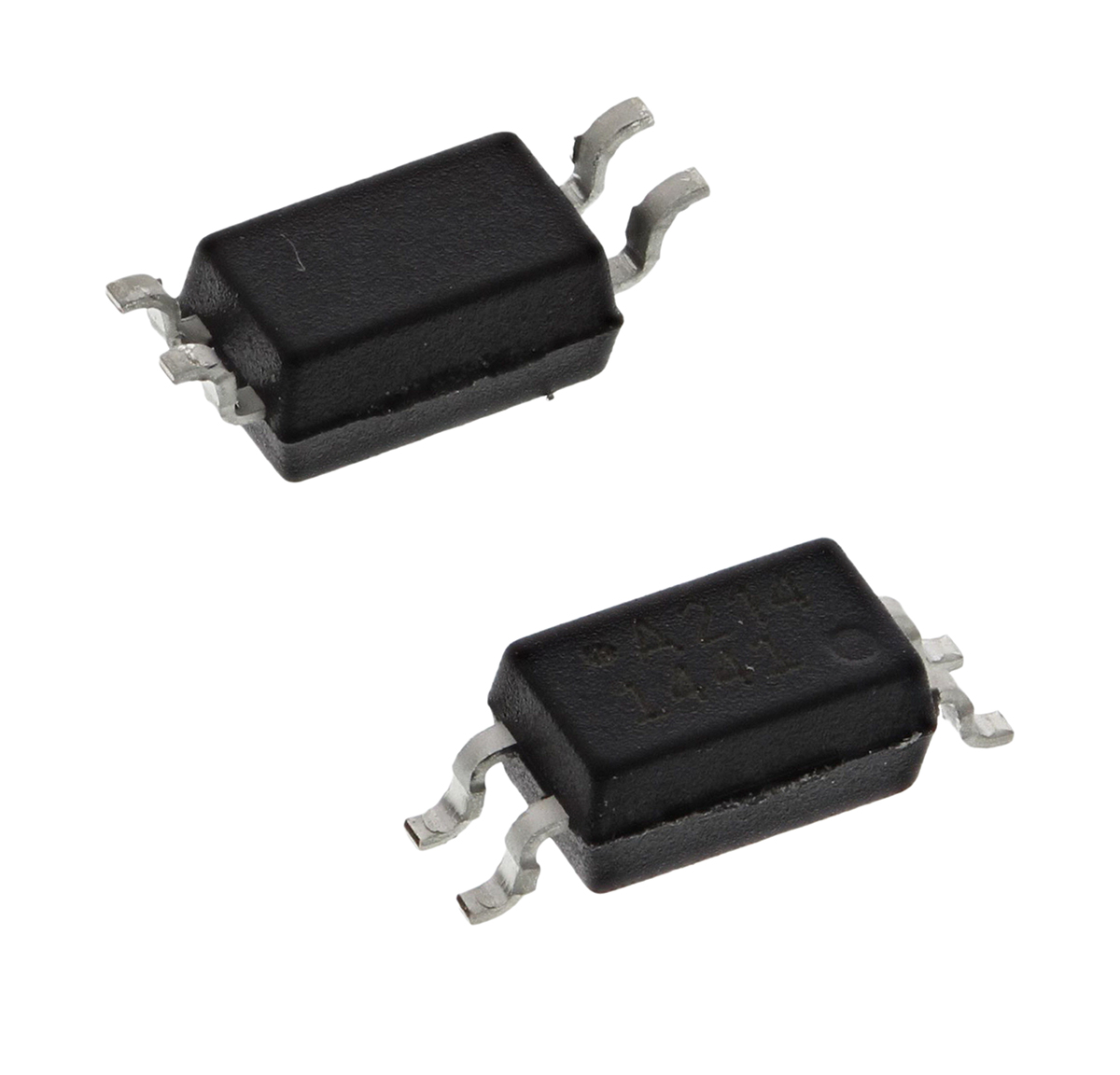

Broadcom ACPL-214-500E AC Input Transistor Output Optocoupler, Surface Mount, 4-Pin SOIC

ACPL-214-500E Broadcom AC Input Transistor Output Optocoupler, Surface Mount, 4-Pin SOIC
Broadcom

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Transistor
Isolation Voltage:
3000 V ac
Mounting Type:
Surface Mount
Series:
ACPL
Typical Rise Time:
2µs
Minimum Current Transfer Ratio:
20%
Maximum Current Transfer Ratio:
400%
Input Current Type:
AC
Number of Pins:
4
Number of Channels:
1
Package Type:
SOIC
Maximum Input Current:
50 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is AC Input Transistor Output Optocoupler Surface Mount 4-Pin SOIC manufactured by Broadcom. The manufacturer part number is ACPL-214-500E. It also carries 1.4v of maximum forward voltage. Its output device includes transistor. It has 3000 v ac isolation voltage. The product is available in surface mount configuration. The product acpl, is a highly preferred choice for users. It has a typical 2µs rise time . In addition, it has a minimum 20% current transfer ratio . It has a maximum 400% current transfer ratio . Its input is of ac type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of soic. While its maximum input current includes 50 ma. It has a typical 3µs fall time .

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ACPL-214-500E on website for other similar products.
We accept all major payment methods for all products including ET13860794. Please check your shopping cart at the time of order.
You can order Broadcom brand products with ACPL-214-500E directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocouplers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Broadcom ACPL-214-500E AC Input Transistor Output Optocoupler, Surface Mount, 4-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Broadcom ACPL-214-500E AC Input Transistor Output Optocoupler, Surface Mount, 4-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13860794 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Broadcom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13860794.
Yes. We ship ACPL-214-500E Internationally to many countries around the world.
