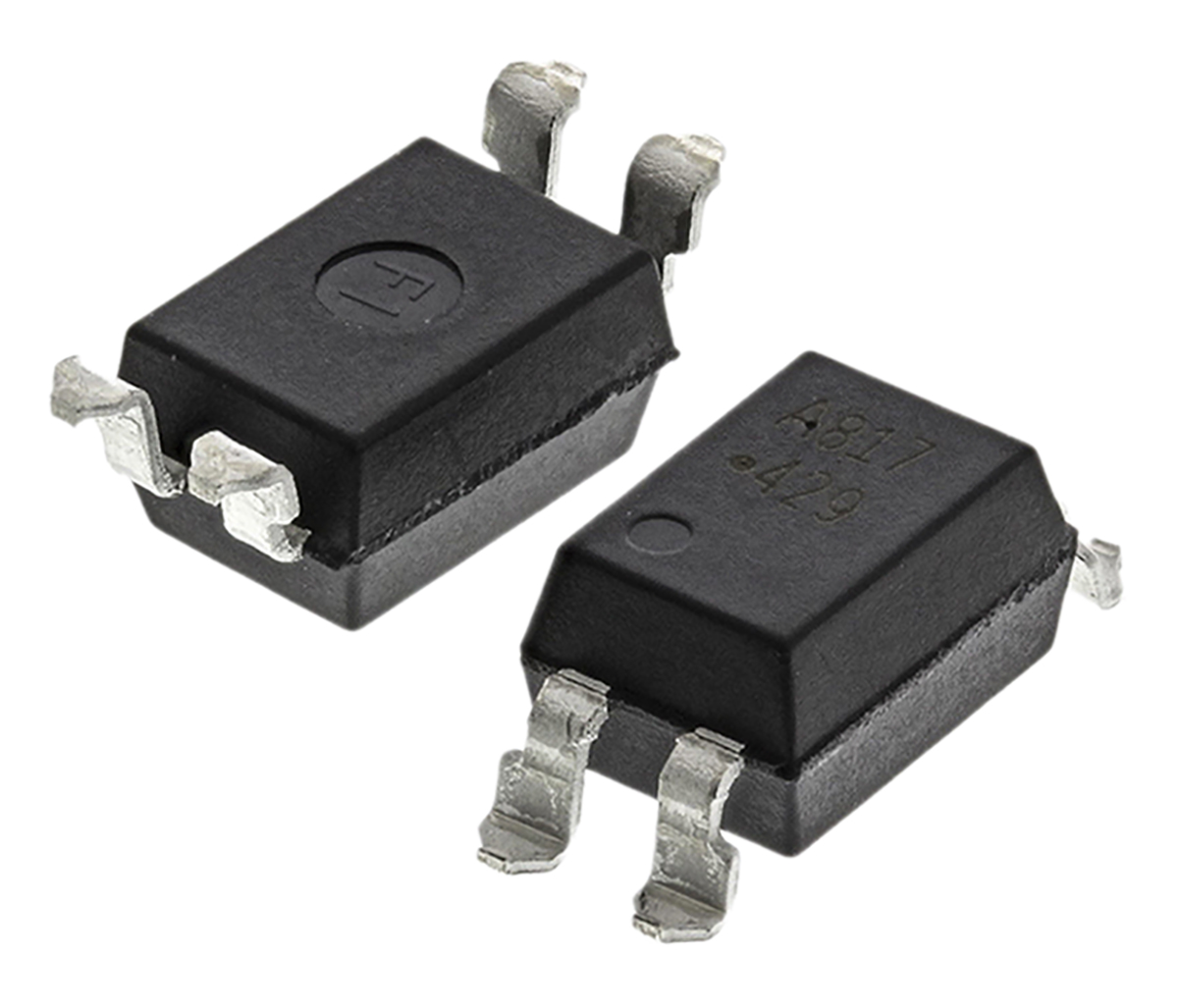

Broadcom HCPL-817-300E DC Input Transistor Output Optocoupler, Surface Mount, 4-Pin SMT

HCPL-817-300E Broadcom DC Input Transistor Output Optocoupler, Surface Mount, 4-Pin SMT
Broadcom

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Transistor
Isolation Voltage:
5000 V ac
Mounting Type:
Surface Mount
Series:
HCPL
Typical Rise Time:
4µs
Minimum Current Transfer Ratio:
50 %
Maximum Current Transfer Ratio:
600%
Input Current Type:
DC
Number of Pins:
4
Number of Channels:
1
Package Type:
SMT
Maximum Input Current:
50 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is DC Input Transistor Output Optocoupler Surface Mount 4-Pin SMT manufactured by Broadcom. The manufacturer part number is HCPL-817-300E. It also carries 1.4v of maximum forward voltage. Its output device includes transistor. It has 5000 v ac isolation voltage. The product is available in surface mount configuration. The product hcpl, is a highly preferred choice for users. It has a typical 4µs rise time . In addition, it has a minimum 50 % current transfer ratio . It has a maximum 600% current transfer ratio . Its input is of dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of smt. While its maximum input current includes 50 ma. It has a typical 3µs fall time .

pdf icon
HCPL-817 Phototransistor Optocoupler High Density Mounting Type Data Sheet(Technical Reference)
