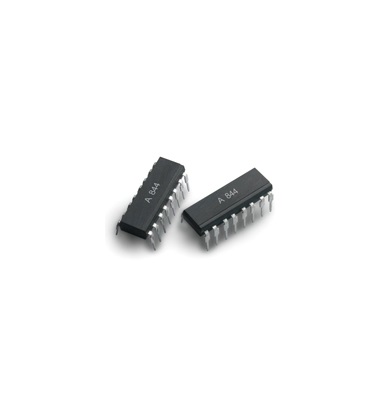

Broadcom ACPL-844-300E AC Input Phototransistor Output Quad Optocoupler, Surface Mount, 16-Pin PDIP

ACPL-844-300E Broadcom  AC Input Phototransistor Output Quad Optocoupler, Surface Mount, 16-Pin PDIP
Broadcom

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Phototransistor
Isolation Voltage:
5 kVrms
Mounting Type:
Surface Mount
Series:
ACPL
Typical Rise Time:
4µs
Minimum Current Transfer Ratio:
20%
Maximum Current Transfer Ratio:
300%
Input Current Type:
AC
Number of Pins:
16
Number of Channels:
4
Package Type:
PDIP
Maximum Input Current:
50 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is AC Input Phototransistor Output Quad Optocoupler Surface Mount 16-Pin PDIP manufactured by Broadcom. The manufacturer part number is ACPL-844-300E. It also carries 1.4v of maximum forward voltage. Its output device includes phototransistor. It has 5 kvrms isolation voltage. The product is available in surface mount configuration. The product acpl, is a highly preferred choice for users. It has a typical 4µs rise time . In addition, it has a minimum 20% current transfer ratio . It has a maximum 300% current transfer ratio . Its input is of ac type . It is comprised of 16 pins. It is supplied with 4 channels. The package is a sort of pdip. While its maximum input current includes 50 ma. It has a typical 3µs fall time .

pdf icon
ACPL-8x4 Multi-Channel Full-Pitch Phototransistor Optocoupler Data Sheet(Technical Reference)
