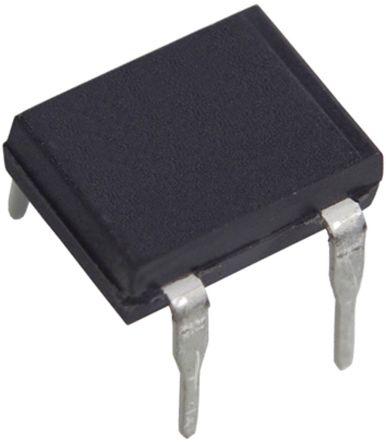

Isocom ISP814AX AC Input Phototransistor Output Optocoupler, Surface Mount, 4-Pin DIP

ISP814AX Isocom AC Input Phototransistor Output Optocoupler, Surface Mount, 4-Pin DIP
Isocom

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Phototransistor
Isolation Voltage:
5.3 kVrms, 7500 V Pk
Mounting Type:
Surface Mount
Series:
ISP814
Typical Rise Time:
4µs
Minimum Current Transfer Ratio:
50%
Maximum Current Transfer Ratio:
150%
Input Current Type:
AC
Number of Pins:
4
Number of Channels:
1
Package Type:
DIP
Maximum Input Current:
±50 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is AC Input Phototransistor Output Optocoupler Surface Mount 4-Pin DIP manufactured by Isocom. The manufacturer part number is ISP814AX. It also carries 1.4v of maximum forward voltage. Its output device includes phototransistor. It has 5.3 kvrms, 7500 v pk isolation voltage. The product is available in surface mount configuration. The product isp814, is a highly preferred choice for users. It has a typical 4µs rise time . In addition, it has a minimum 50% current transfer ratio . It has a maximum 150% current transfer ratio . Its input is of ac type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of dip. While its maximum input current includes ±50 ma. It has a typical 3µs fall time .
