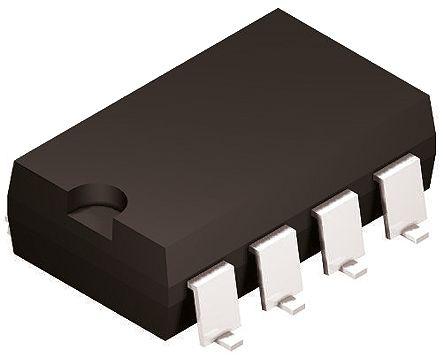

Broadcom HCPL-3180-300E DC Input IGBT Gate Drive Output Dual Optocoupler, Surface Mount, 8-Pin DIP

HCPL-3180-300E Broadcom DC Input IGBT Gate Drive Output Dual Optocoupler, Surface Mount, 8-Pin DIP
Broadcom

Product Information

Maximum Forward Voltage:
1.8V
Output Device:
IGBT Gate Drive
Isolation Voltage:
3.75 kVrms
Mounting Type:
Surface Mount
Typical Rise Time:
25ns
Input Current Type:
DC
Number of Pins:
8
Number of Channels:
2
Package Type:
DIP
Maximum Input Current:
16 mA
Logic Output:
Yes
Typical Fall Time:
25ns
RoHs Compliant
Checking for live stock

This is DC Input IGBT Gate Drive Output Dual Optocoupler Surface Mount 8-Pin DIP manufactured by Broadcom. The manufacturer part number is HCPL-3180-300E. It also carries 1.8v of maximum forward voltage. Its output device includes igbt gate drive. It has 3.75 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 25ns rise time . Its input is of dc type . It is comprised of 8 pins. It is supplied with 2 channels. The package is a sort of dip. While its maximum input current includes 16 ma. It includes a logic output yes . It has a typical 25ns fall time .

pdf icon
HCPL-3180 2.5 Amp Output Current, High Speed, Gate Drive Optocoupler Data Sheet(Technical Reference)
