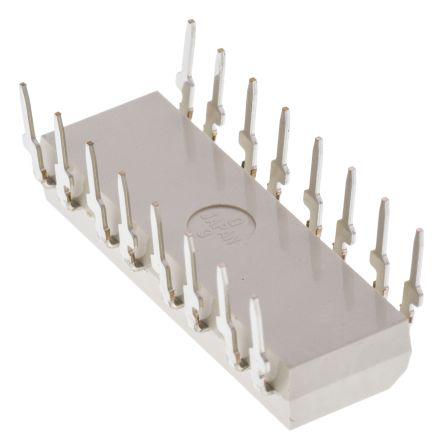

Toshiba TLP523-4(F) DC Input Darlington Output Quad Optocoupler, Through Hole, 16-Pin PDIP

TLP523-4-F- Toshiba TLP523-4(F) DC Input Darlington Output Quad Optocoupler, Through Hole, 16-Pin PDIP
TLP523-4(F)
Toshiba

Product Information

Maximum Forward Voltage:
1.3V
Output Device:
Darlington
Isolation Voltage:
2.5 kVrms
Mounting Type:
Through Hole
Minimum Current Transfer Ratio:
1000 %
Maximum Current Transfer Ratio:
2000%
Input Current Type:
DC
Number of Pins:
16
Number of Channels:
4
Package Type:
PDIP
Maximum Input Current:
50 mA
RoHs Compliant
Checking for live stock

This is DC Input Darlington Output Quad Optocoupler Through Hole 16-Pin PDIP manufactured by Toshiba. The manufacturer part number is TLP523-4(F). It also carries 1.3v of maximum forward voltage. Its output device includes darlington. It has 2.5 kvrms isolation voltage. The product is available in through hole configuration. In addition, it has a minimum 1000 % current transfer ratio . It has a maximum 2000% current transfer ratio . Its input is of dc type . It is comprised of 16 pins. It is supplied with 4 channels. The package is a sort of pdip. While its maximum input current includes 50 ma.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TLP523-4(F) on website for other similar products.
We accept all major payment methods for all products including ET13864969. Please check your shopping cart at the time of order.
You can order Toshiba brand products with TLP523-4(F) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocoupler ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba TLP523-4(F) DC Input Darlington Output Quad Optocoupler, Through Hole, 16-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on Toshiba TLP523-4(F) DC Input Darlington Output Quad Optocoupler, Through Hole, 16-Pin PDIP.
