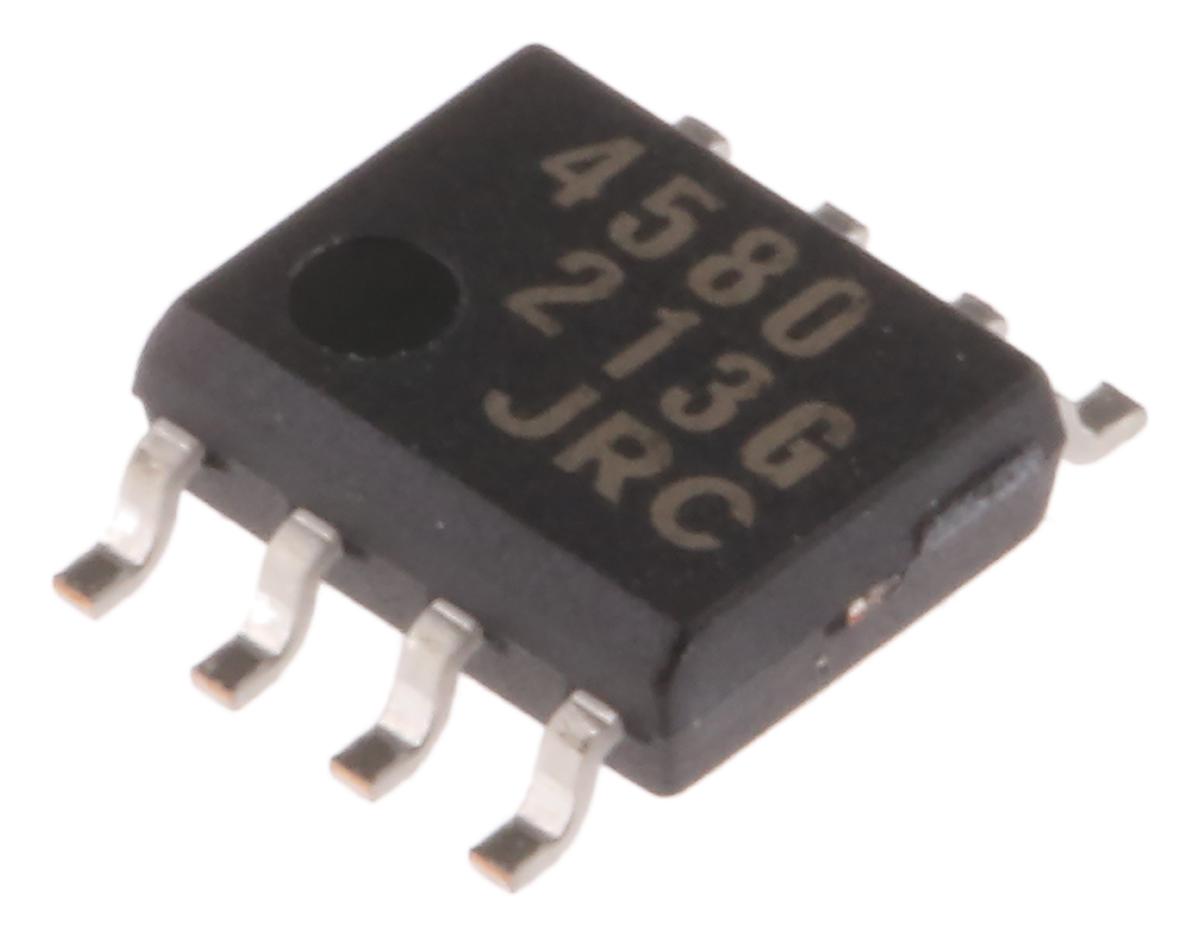

NJM4580E Nisshinbo Micro Devices, Op Amp, 15MHz, 8-Pin EMP

NJM4580E  Nisshinbo Micro Devices, Op Amp, 15MHz, 8-Pin EMP
NJM4580E
Nisshinbo Micro Devices

Product Information

Typical Dual Supply Voltage:
±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Typical Gain Bandwidth Product:
15MHz
Dimensions:
5 x 3.9 x 1.5mm
Mounting Type:
Surface Mount
Typical Slew Rate:
5V/µs
Power Supply Type:
Dual
Number of Channels per Chip:
2
Rail to Rail:
No
Height:
1.5mm
Width:
3.9mm
Length:
5mm
Package Type:
EMP
Minimum Operating Temperature:
-40 °C
Typical Voltage Gain:
110 dB
Maximum Operating Temperature:
+85 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Op Amp 15MHz 8-Pin EMP manufactured by Nisshinbo Micro Devices. The manufacturer part number is NJM4580E. While ±12 v, ±15 v, ±3 v, ±5 v, ±9 v is the typical dual supply voltage. Features 15mhz typical gain bandwidth. The given dimensions of the product include 5 x 3.9 x 1.5mm. The product is available in surface mount configuration. Furthermore, it has a typical 5v/µs of slew rate. It is a type of dual power supply. It comprises 2 channels per chip. Rail to rail options include no. In addition, the height is 1.5mm. Furthermore, the product is 3.9mm wide. Its accurate length is 5mm. The package is a sort of emp. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, its typical voltage gain includes 110 db. It has a maximum operating temperature of +85 °c. It contains 8 pins.
