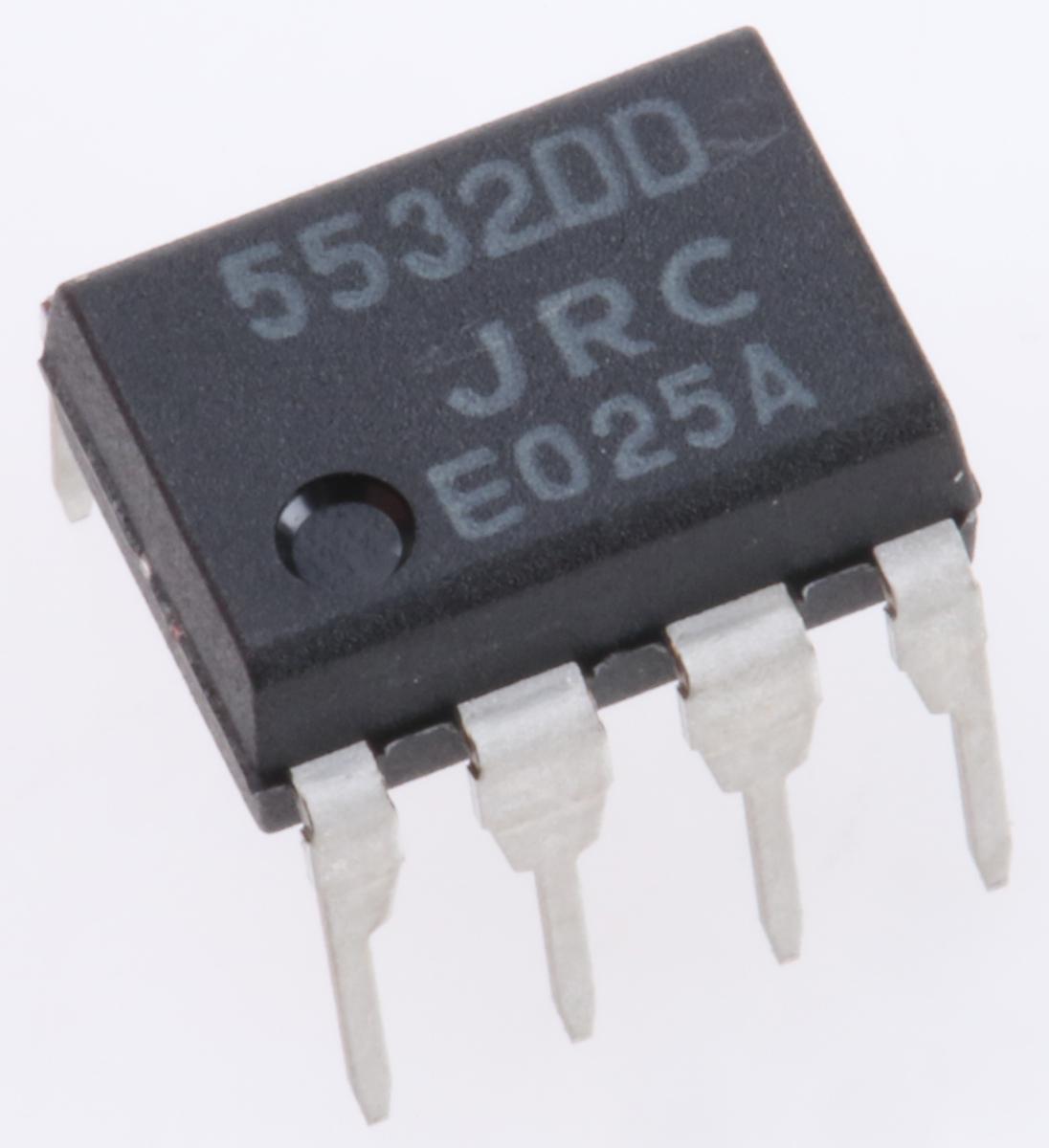

NJM5532DD Nisshinbo Micro Devices, Op Amp, 10MHz, 8-Pin PDIP

NJM5532DD Nisshinbo Micro Devices, Op Amp, 10MHz, 8-Pin PDIP
NJM5532DD
Nisshinbo Micro Devices

Product Information

Typical Dual Supply Voltage:
±22V
Typical Input Voltage Noise Density:
8nV/√Hz
Typical Gain Bandwidth Product:
10MHz
Dimensions:
8.8 x 6.4 x 3.4mm
Mounting Type:
Through Hole
Typical Slew Rate:
8V/µs
Power Supply Type:
Dual
Number of Channels per Chip:
2
Rail to Rail:
No
Height:
3.4mm
Width:
6.4mm
Length:
8.8mm
Package Type:
PDIP
Minimum Operating Temperature:
-20 °C
Typical Voltage Gain:
100 dB
Maximum Operating Temperature:
+75 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Op Amp 10MHz 8-Pin PDIP manufactured by Nisshinbo Micro Devices. The manufacturer part number is NJM5532DD. While ±22v is the typical dual supply voltage. Featuring a 8nv/√hz of typical input voltage noise density. Features 10mhz typical gain bandwidth. The given dimensions of the product include 8.8 x 6.4 x 3.4mm. The product is available in through hole configuration. Furthermore, it has a typical 8v/µs of slew rate. It is a type of dual power supply. It comprises 2 channels per chip. Rail to rail options include no. In addition, the height is 3.4mm. Furthermore, the product is 6.4mm wide. Its accurate length is 8.8mm. The package is a sort of pdip. Whereas, the minimum operating temperature of the product is -20 °c. Furthermore, its typical voltage gain includes 100 db. It has a maximum operating temperature of +75 °c. It contains 8 pins.

pdf icon
Dual Op Amp Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search NJM5532DD on website for other similar products.
We accept all major payment methods for all products including ET22801992. Please check your shopping cart at the time of order.
You can order Nisshinbo Micro Devices brand products with NJM5532DD directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Op Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NJM5532DD Nisshinbo Micro Devices, Op Amp, 10MHz, 8-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on NJM5532DD Nisshinbo Micro Devices, Op Amp, 10MHz, 8-Pin PDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22801992 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nisshinbo Micro Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22801992.
Yes. We ship NJM5532DD Internationally to many countries around the world.
