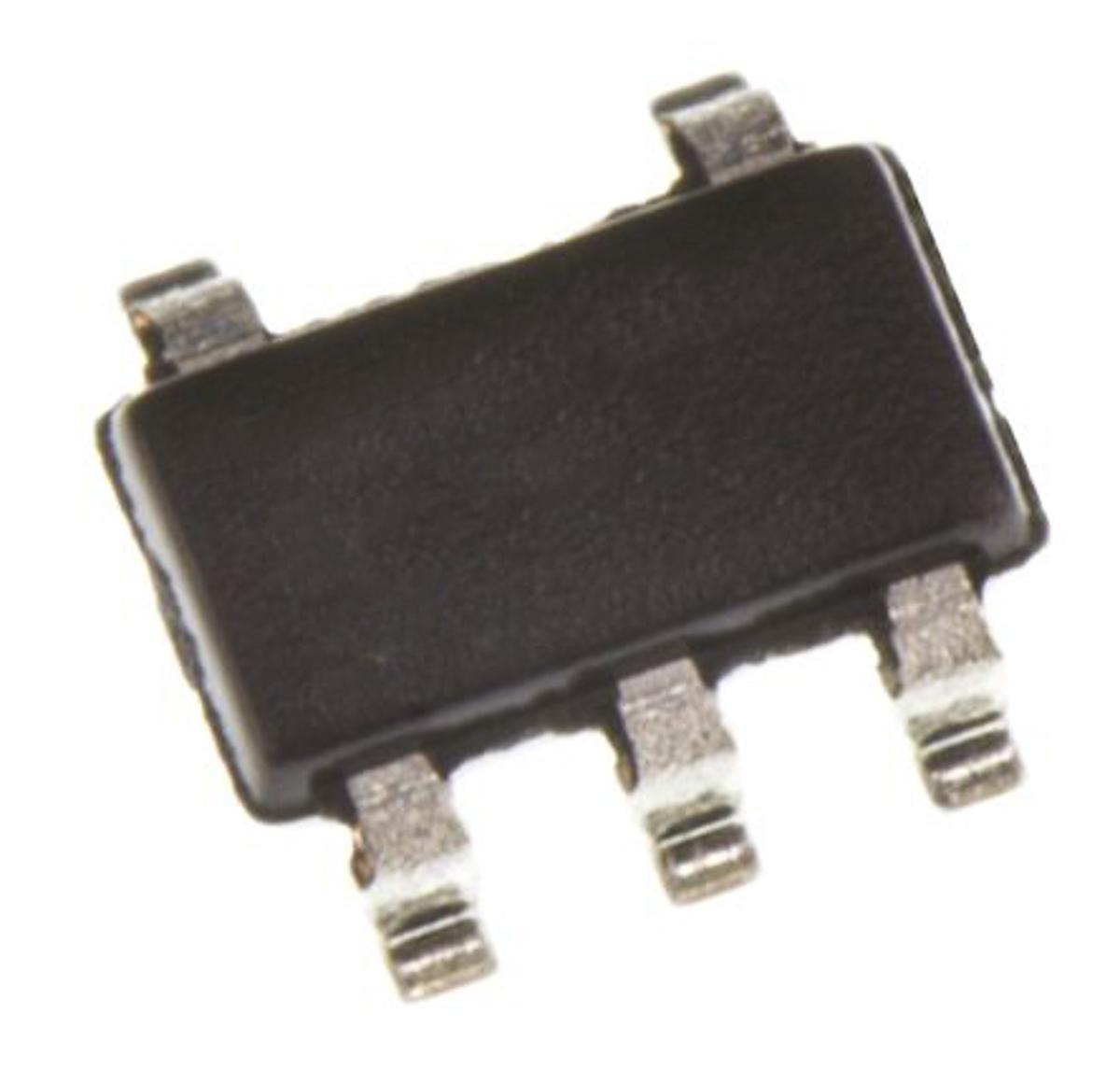

SINGLE PRECISION CMOS R-R OP AMP

AD8615AUJZ-REEL7 SINGLE PRECISION CMOS R-R OP AMP
Analog Devices

Product Information

Dimensions:
2.9 x 1.6 x 0.9mm
Typical Slew Rate:
12V/µs
Rail to Rail:
Rail to Rail Input/Output
Width:
1.6mm
Maximum Operating Frequency:
1 MHz
Input Offset Current:
250pA
Power Supply Type:
Single
Number of Channels per Chip:
1
Output Type:
Rail to Rail
Package Type:
TSOT-23
Typical Voltage Gain:
1500 V/mV
Maximum Operating Temperature:
+125 °C
Typical Gain Bandwidth Product:
24MHz
Length:
2.9mm
Pin Count:
5
Offset Voltage:
800µV
Typical Input Voltage Noise Density:
10nV/√Hz
Mounting Type:
Surface Mount
Output Current:
±150 mA
Input Voltage Range:
2.7 → 5.5 V
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
0.9mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Precision
Maximum Input Voltage:
5.5 V
Minimum Input Voltage:
2.7 V
RoHs Compliant
Checking for live stock

This is SINGLE PRECISION CMOS R-R OP AMP manufactured by Analog Devices. The manufacturer part number is AD8615AUJZ-REEL7. The given dimensions of the product include 2.9 x 1.6 x 0.9mm. Furthermore, it has a typical 12v/µs of slew rate. Rail to rail options include rail to rail input/output. Furthermore, the product is 1.6mm wide. It carries 1 mhz of maximum operating frequency. In addition, it exhibits an input 250pa offset current . It is a type of single power supply. It comprises 1 channels per chip. Furthermore, it has arail to rail output. The package is a sort of tsot-23. Furthermore, its typical voltage gain includes 1500 v/mv. It has a maximum operating temperature of +125 °c. Features 24mhz typical gain bandwidth. Its accurate length is 2.9mm. It contains 5 pins. Its offset voltage is approximately 800µv . Featuring a 10nv/√hz of typical input voltage noise density. The product is available in surface mount configuration. It carries ±150 ma output current. It has 2.7 → 5.5 v of input voltage range. It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 0.9mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a precision amplifier. 5.5 v is the maximum voltage of the bespoke product. The product has 2.7 v of minimum input voltage.

pdf icon
Datasheet AD8615AUJZ-REEL7(Technical Reference)
