DUAL, PRECISION CMOS RAIL-RAIL OP AMP

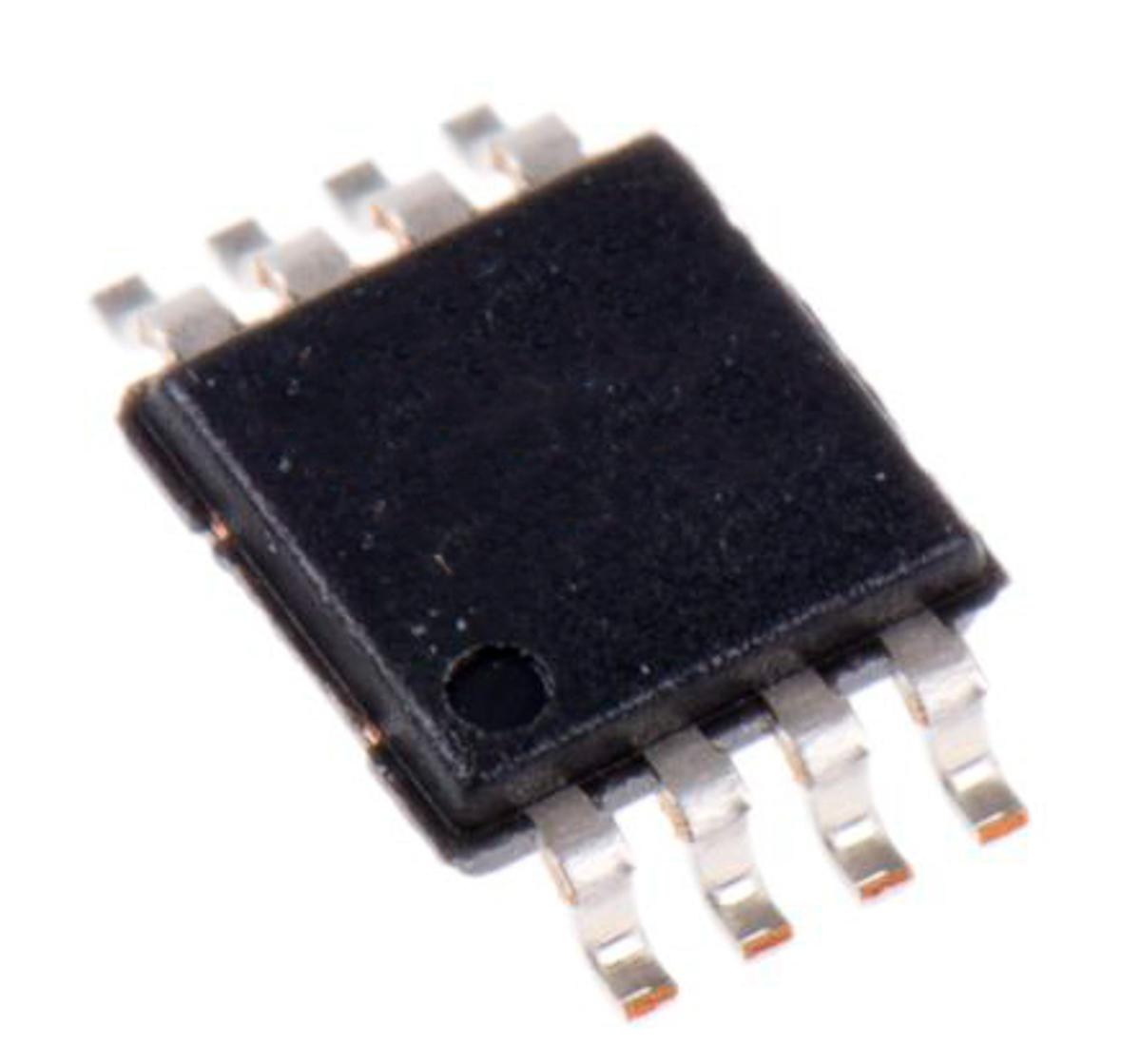

AD8606ARMZ-REEL DUAL, PRECISION CMOS RAIL-RAIL OP AMP
Analog Devices

Product Information

Dimensions:
3.2 x 3.2 x 0.95mm
Typical Slew Rate:
5V/µs
Rail to Rail:
Rail to Rail Input/Output
Width:
3.2mm
Maximum Operating Frequency:
1 MHz
Input Offset Current:
75pA
Power Supply Type:
Single
Number of Channels per Chip:
2
Output Type:
Rail to Rail
Package Type:
MSOP
Typical Voltage Gain:
1000 V/mV
Maximum Operating Temperature:
+125 °C
Typical Gain Bandwidth Product:
10MHz
Length:
3.2mm
Pin Count:
8
Offset Voltage:
750µV
Typical Input Voltage Noise Density:
12nV/√Hz
Mounting Type:
Surface Mount
Output Current:
±80 mA
Input Voltage Range:
2.7 → 5.5 V
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Low Noise
Maximum Input Voltage:
5.5 V
Minimum Input Voltage:
2.7 V
RoHs Compliant
Checking for live stock

This is DUAL PRECISION CMOS RAIL-RAIL OP AMP manufactured by Analog Devices. The manufacturer part number is AD8606ARMZ-REEL. The given dimensions of the product include 3.2 x 3.2 x 0.95mm. Furthermore, it has a typical 5v/µs of slew rate. Rail to rail options include rail to rail input/output. Furthermore, the product is 3.2mm wide. It carries 1 mhz of maximum operating frequency. In addition, it exhibits an input 75pa offset current . It is a type of single power supply. It comprises 2 channels per chip. Furthermore, it has arail to rail output. The package is a sort of msop. Furthermore, its typical voltage gain includes 1000 v/mv. It has a maximum operating temperature of +125 °c. Features 10mhz typical gain bandwidth. Its accurate length is 3.2mm. It contains 8 pins. Its offset voltage is approximately 750µv . Featuring a 12nv/√hz of typical input voltage noise density. The product is available in surface mount configuration. It carries ±80 ma output current. It has 2.7 → 5.5 v of input voltage range. It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a low noise amplifier. 5.5 v is the maximum voltage of the bespoke product. The product has 2.7 v of minimum input voltage.

pdf icon
Datasheet AD8606ARMZ-REEL(Technical Reference)
