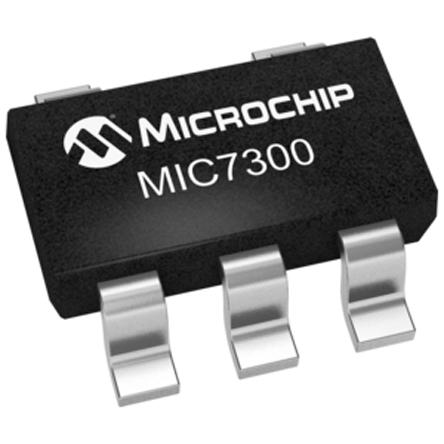

Microchip MIC7300YM5-TR, Op Amp, RRIO, 550kHz, 5-Pin SOT-23

MIC7300YM5-TR Microchip , Op Amp, RRIO, 550kHz, 5-Pin SOT-23
Microchip

Product Information

Dimensions:
3.02 x 1.75 x 1.3mm
Typical Slew Rate:
0.5V/µs
Rail to Rail:
Rail to Rail Input/Output
Width:
1.75mm
Input Offset Current:
0.25pA
Power Supply Type:
Single
Number of Channels per Chip:
1
Maximum Operating Frequency:
1 kHz
Package Type:
SOT-23
Typical Voltage Gain:
110.6 dB
Maximum Operating Temperature:
+85 °C
Typical Gain Bandwidth Product:
550kHz
Length:
3.02mm
Pin Count:
5
Typical Input Voltage Noise Density:
37nV/√Hz
Offset Voltage:
9mV
Mounting Type:
Surface Mount
Input Voltage Range:
2.2 → 10 V
Height:
1.3mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
General Purpose
Maximum Input Voltage:
10 V
Minimum Input Voltage:
2.2 V
RoHs Compliant
Checking for live stock

This is Op Amp RRIO 550kHz 5-Pin SOT-23 manufactured by Microchip. The manufacturer part number is MIC7300YM5-TR. The given dimensions of the product include 3.02 x 1.75 x 1.3mm. Furthermore, it has a typical 0.5v/µs of slew rate. Rail to rail options include rail to rail input/output. Furthermore, the product is 1.75mm wide. In addition, it exhibits an input 0.25pa offset current . It is a type of single power supply. It comprises 1 channels per chip. It carries 1 khz of maximum operating frequency. The package is a sort of sot-23. Furthermore, its typical voltage gain includes 110.6 db. It has a maximum operating temperature of +85 °c. Features 550khz typical gain bandwidth. Its accurate length is 3.02mm. It contains 5 pins. Featuring a 37nv/√hz of typical input voltage noise density. Its offset voltage is approximately 9mv . The product is available in surface mount configuration. It has 2.2 → 10 v of input voltage range. In addition, the height is 1.3mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a general purpose amplifier. 10 v is the maximum voltage of the bespoke product. The product has 2.2 v of minimum input voltage.

pdf icon
MIC7300 High-Output Drive Rail-to-Rail Op Amp Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
