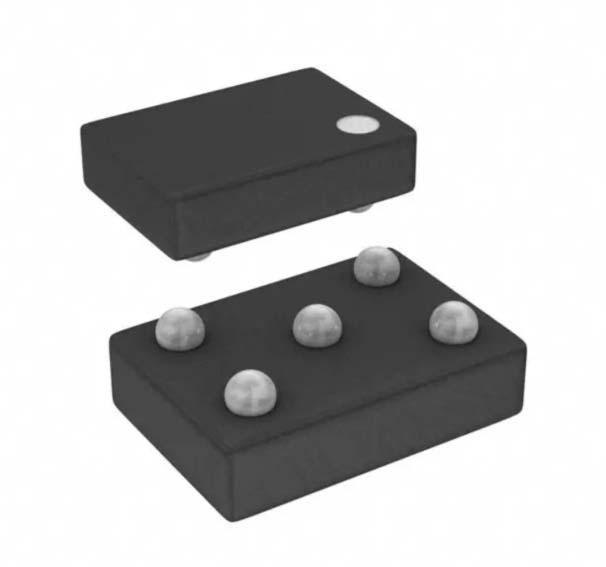

Analog Devices AD8605ACBZ-REEL7, Low Noise, Op Amp, RRIO, 10MHz, 6 V, 5-Pin WLCSP

AD8605ACBZ-REEL7 Analog Devices , Low Noise, Op Amp, RRIO, 10MHz, 6 V, 5-Pin WLCSP
Analog Devices

Product Information

Dimensions:
1.33 x 0.94 x 0.38mm
Typical Slew Rate:
5V/µs
Rail to Rail:
Rail to Rail Input/Output
Width:
0.94mm
Input Offset Current:
75pA
Power Supply Type:
Single
Number of Channels per Chip:
1
Maximum Operating Frequency:
10 MHz
Package Type:
WLCSP
Typical Voltage Gain:
120 dB
Maximum Operating Temperature:
+125 °C
Typical Gain Bandwidth Product:
10MHz
Length:
1.33mm
Pin Count:
5
Offset Voltage:
750µV
Typical Input Voltage Noise Density:
8nV/√Hz
Mounting Type:
Surface Mount
Output Current:
±80 mA
Input Voltage Range:
2.7 → 5.5 V
Typical Single Supply Voltage:
6 V
Height:
0.38mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Low Noise
Maximum Input Voltage:
5.5 V
Minimum Input Voltage:
2.7 V
RoHs Compliant
Checking for live stock

This is Low Noise Op Amp RRIO 10MHz 6 V 5-Pin WLCSP manufactured by Analog Devices. The manufacturer part number is AD8605ACBZ-REEL7. The given dimensions of the product include 1.33 x 0.94 x 0.38mm. Furthermore, it has a typical 5v/µs of slew rate. Rail to rail options include rail to rail input/output. Furthermore, the product is 0.94mm wide. In addition, it exhibits an input 75pa offset current . It is a type of single power supply. It comprises 1 channels per chip. It carries 10 mhz of maximum operating frequency. The package is a sort of wlcsp. Furthermore, its typical voltage gain includes 120 db. It has a maximum operating temperature of +125 °c. Features 10mhz typical gain bandwidth. Its accurate length is 1.33mm. It contains 5 pins. Its offset voltage is approximately 750µv . Featuring a 8nv/√hz of typical input voltage noise density. The product is available in surface mount configuration. It carries ±80 ma output current. It has 2.7 → 5.5 v of input voltage range. It has a typical single supply voltage of 6 v. In addition, the height is 0.38mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a low noise amplifier. 5.5 v is the maximum voltage of the bespoke product. The product has 2.7 v of minimum input voltage.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AD8605 SPICE Macro-Model(Technical Reference)
