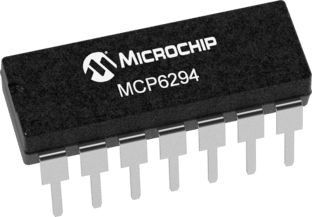

Microchip MCP6294-E/P, Quad Op Amp, 10MHz CMOS, Rail to Rail, 14-Pin PDIP

MCP6294-E-P Microchip MCP6294-E/P, Quad Op Amp, 10MHz CMOS, Rail to Rail, 14-Pin PDIP
Microchip

Product Information

Dimensions:
19.05 x 6.35 x 3.3mm
Typical Slew Rate:
7V/µs
Rail to Rail:
Rail to Rail Input/Output
Width:
6.35mm
Input Offset Current:
1pA
Power Supply Type:
Single
Number of Channels per Chip:
4
Maximum Operating Frequency:
10 kHz
Package Type:
PDIP
Typical Voltage Gain:
110 dB
Maximum Operating Temperature:
+125 °C
Typical Gain Bandwidth Product:
10MHz
Length:
19.05mm
Pin Count:
14
Offset Voltage:
±5mV
Typical Input Voltage Noise Density:
8.7nV/√Hz
Mounting Type:
Through Hole
Output Current:
±25 (Short Circuit) mA
Input Voltage Range:
2.4 → 6 V
Height:
3.3mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
General Purpose
Maximum Input Voltage:
6 V
Minimum Input Voltage:
2.4 V
RoHs Compliant
Checking for live stock

This is Quad Op Amp 10MHz CMOS Rail to Rail 14-Pin PDIP manufactured by Microchip. The manufacturer part number is MCP6294-E/P. The given dimensions of the product include 19.05 x 6.35 x 3.3mm. Furthermore, it has a typical 7v/µs of slew rate. Rail to rail options include rail to rail input/output. Furthermore, the product is 6.35mm wide. In addition, it exhibits an input 1pa offset current . It is a type of single power supply. It comprises 4 channels per chip. It carries 10 khz of maximum operating frequency. The package is a sort of pdip. Furthermore, its typical voltage gain includes 110 db. It has a maximum operating temperature of +125 °c. Features 10mhz typical gain bandwidth. Its accurate length is 19.05mm. It contains 14 pins. Its offset voltage is approximately ±5mv . Featuring a 8.7nv/√hz of typical input voltage noise density. The product is available in through hole configuration. It carries ±25 (short circuit) ma output current. It has 2.4 → 6 v of input voltage range. In addition, the height is 3.3mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a general purpose amplifier. 6 v is the maximum voltage of the bespoke product. The product has 2.4 v of minimum input voltage.
