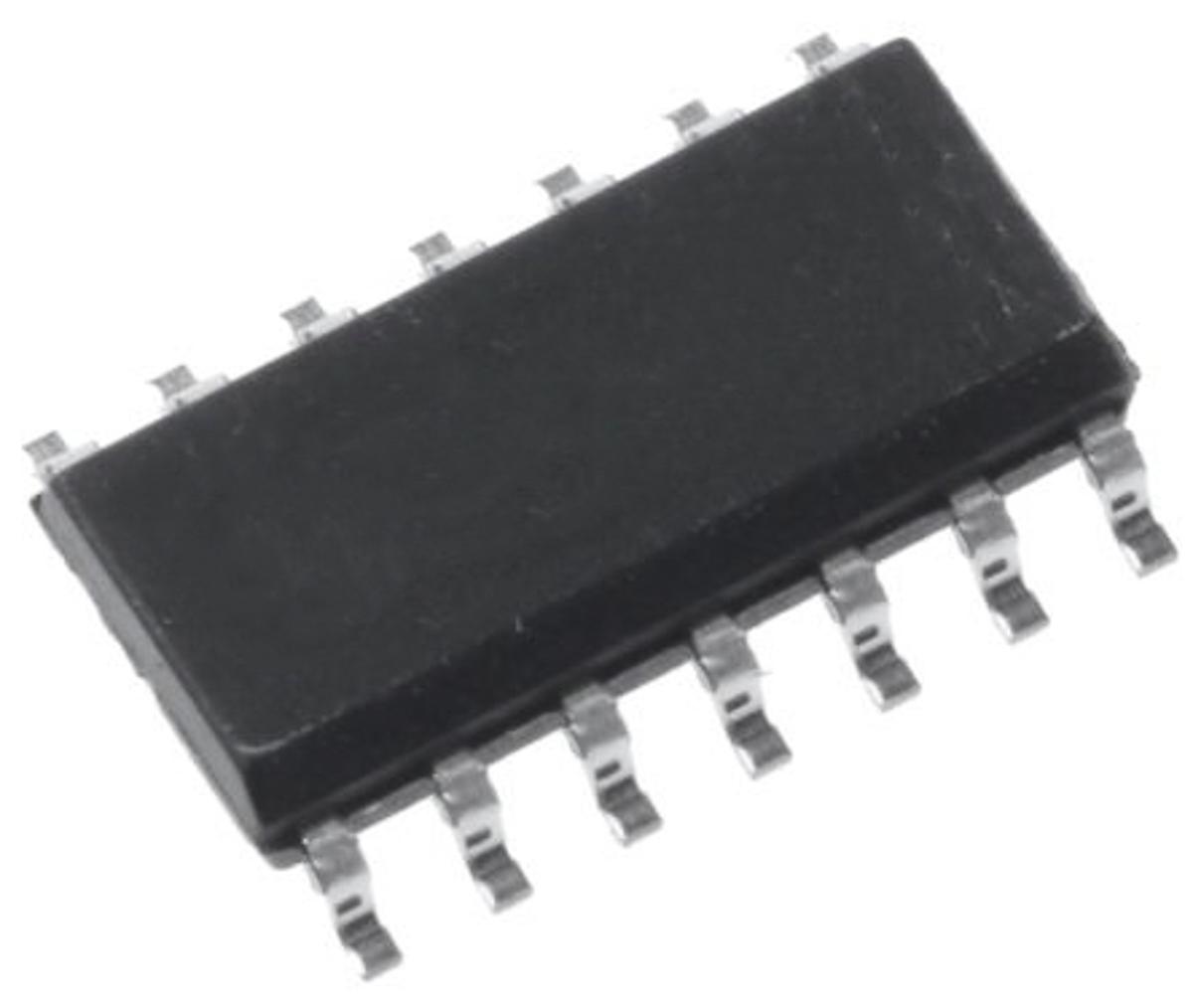

Analog Devices AD8277BRZ, Differential Amplifier 550kHz 2-channel Rail to Rail Output 14-Pin SOIC

AD8277BRZ Analog Devices , Differential Amplifier 550kHz 2-channel Rail to Rail Output 14-Pin SOIC
Analog Devices

Product Information

Dimensions:
8.75 x 4 x 1.5mm
Typical Slew Rate:
1.1V/µs
Typical Gain Bandwidth Product:
550kHz
Width:
4mm
Maximum Operating Frequency:
1 kHz
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Output Type:
Differential
Package Type:
SOIC
Maximum Operating Temperature:
+85 °C
Typical Single Supply Voltage:
2 → 36 V
Pin Count:
14
Typical Dual Supply Voltage:
±2 to ±18V
Offset Voltage:
200µV
Mounting Type:
Surface Mount
Input Voltage Range:
±2 → ±18 V, 2 → 36 V
Length:
8.75mm
Height:
1.5mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Low Power
Maximum Input Voltage:
36 V, ±18 V
Minimum Input Voltage:
2 V, ±2 V
RoHs Compliant
Checking for live stock

This is Differential Amplifier 550kHz 2-channel Rail to Rail Output 14-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD8277BRZ. The given dimensions of the product include 8.75 x 4 x 1.5mm. Furthermore, it has a typical 1.1v/µs of slew rate. Features 550khz typical gain bandwidth. Furthermore, the product is 4mm wide. It carries 1 khz of maximum operating frequency. It is a type of dual, single power supply. It comprises 2 channels per chip. Furthermore, it has adifferential output. The package is a sort of soic. It has a maximum operating temperature of +85 °c. It has a typical single supply voltage of 2 → 36 v. It contains 14 pins. While ±2 to ±18v is the typical dual supply voltage. Its offset voltage is approximately 200µv . The product is available in surface mount configuration. It has ±2 → ±18 v, 2 → 36 v of input voltage range. Its accurate length is 8.75mm. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a low power amplifier. 36 v, ±18 v is the maximum voltage of the bespoke product. The product has 2 v, ±2 v of minimum input voltage.

pdf icon
Datasheet AD8277BRZ(Technical Reference)
