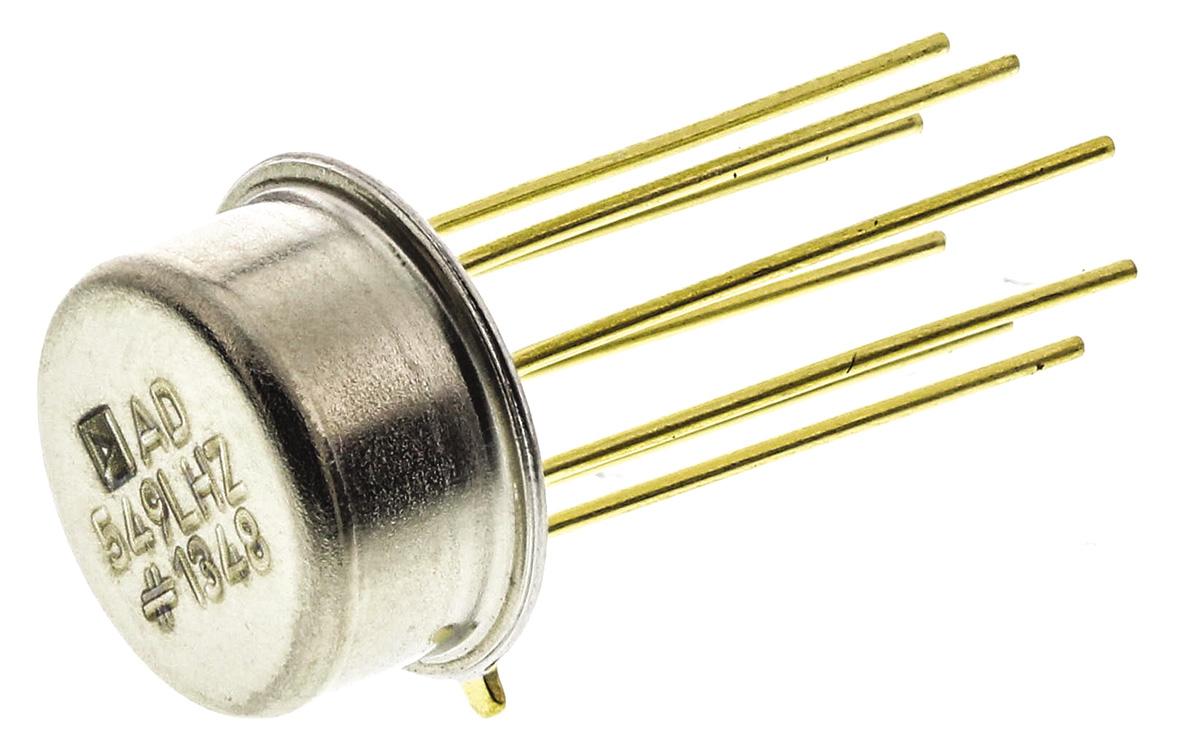

Analog Devices AD549LHZ, Op Amp, 1MHz, 8-Pin TO-99

AD549LHZ Analog Devices , Op Amp, 1MHz, 8-Pin TO-99
AD549LHZ
Analog Devices

Product Information

Typical Dual Supply Voltage:
±15V
Typical Input Voltage Noise Density:
90nV/√Hz
Typical Gain Bandwidth Product:
1MHz
Dimensions:
9.4 x 9.4 x 4.7mm
Mounting Type:
Through Hole
Typical Slew Rate:
3V/µs
Power Supply Type:
Dual
Number of Channels per Chip:
1
Rail to Rail:
No
Height:
4.7mm
Width:
9.4mm
Length:
9.4mm
Package Type:
TO-99
Minimum Operating Temperature:
0 °C
Typical Voltage Gain:
120 dB
Maximum Operating Temperature:
+70 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Op Amp 1MHz 8-Pin TO-99 manufactured by Analog Devices. The manufacturer part number is AD549LHZ. While ±15v is the typical dual supply voltage. Featuring a 90nv/√hz of typical input voltage noise density. Features 1mhz typical gain bandwidth. The given dimensions of the product include 9.4 x 9.4 x 4.7mm. The product is available in through hole configuration. Furthermore, it has a typical 3v/µs of slew rate. It is a type of dual power supply. It comprises 1 channels per chip. Rail to rail options include no. In addition, the height is 4.7mm. Furthermore, the product is 9.4mm wide. Its accurate length is 9.4mm. The package is a sort of to-99. Whereas, the minimum operating temperature of the product is 0 °c. Furthermore, its typical voltage gain includes 120 db. It has a maximum operating temperature of +70 °c. It contains 8 pins.

pdf icon
AD549 SPICE Macro Model(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AD549 Datasheet(Technical Reference)
