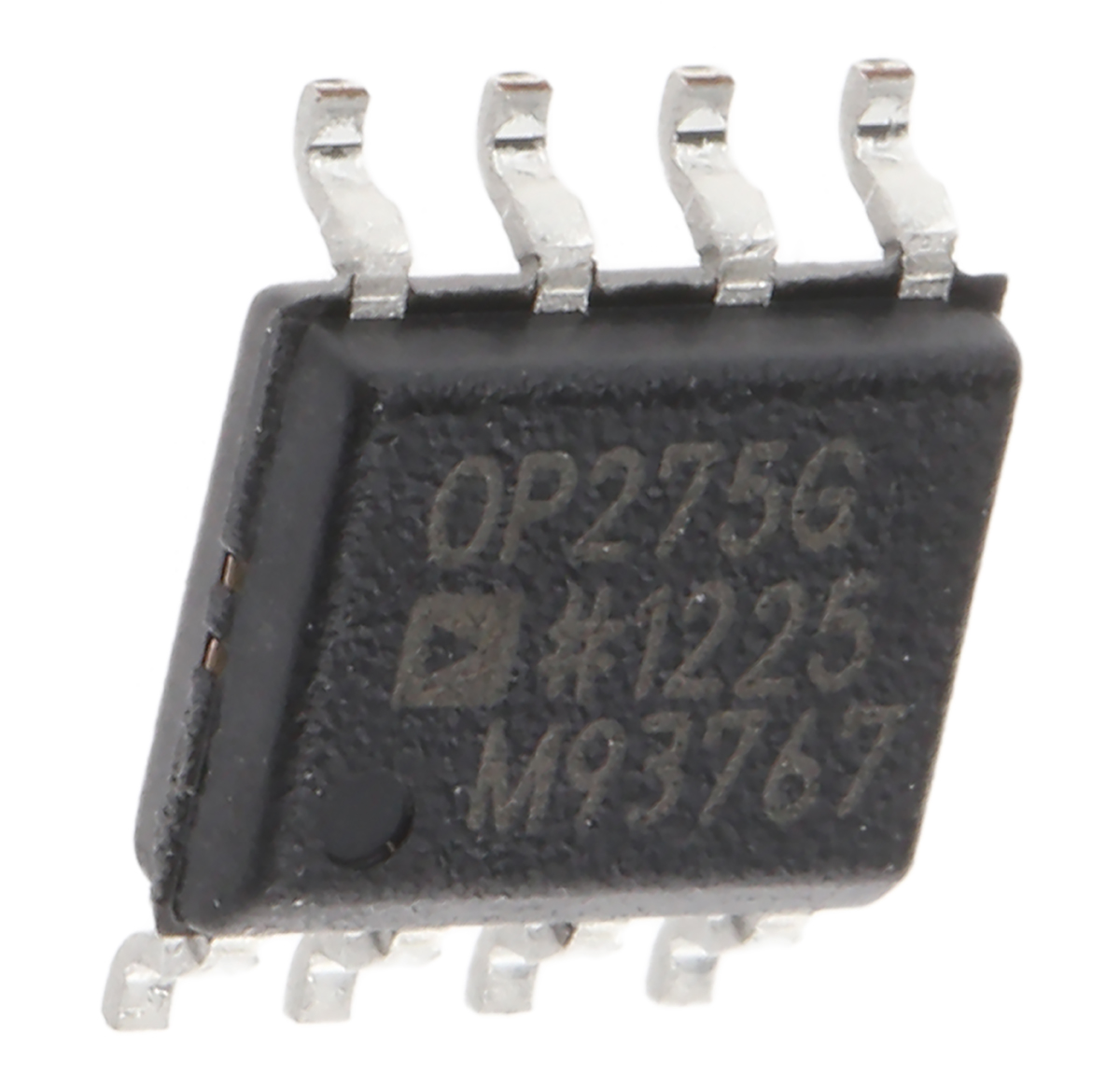

Analog Devices OP275GSZ, Op Amp, 9MHz, 8-Pin SOIC

OP275GSZ Analog Devices , Op Amp, 9MHz, 8-Pin SOIC
OP275GSZ
Analog Devices

Product Information

Typical Dual Supply Voltage:
±12 V, ±15 V, ±18 V, ±5 V, ±9 V
Typical Input Voltage Noise Density:
7nV/√Hz
Typical Gain Bandwidth Product:
9MHz
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Typical Slew Rate:
22V/µs
Power Supply Type:
Dual
Number of Channels per Chip:
2
Rail to Rail:
No
Height:
1.5mm
Width:
4mm
Length:
5mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Typical Voltage Gain:
106 dB
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Checking for live stock

This is Op Amp 9MHz 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is OP275GSZ. While ±12 v, ±15 v, ±18 v, ±5 v, ±9 v is the typical dual supply voltage. Featuring a 7nv/√hz of typical input voltage noise density. Features 9mhz typical gain bandwidth. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. Furthermore, it has a typical 22v/µs of slew rate. It is a type of dual power supply. It comprises 2 channels per chip. Rail to rail options include no. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, its typical voltage gain includes 106 db. It has a maximum operating temperature of +85 °c. It contains 8 pins.

pdf icon
OP275 Dual Bipolar/JFET, Audio Operational Amplifier Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
