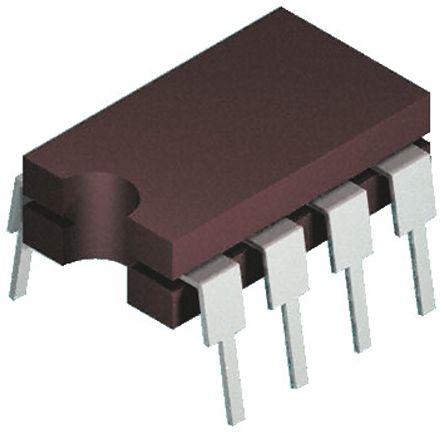

Analog Devices OP77EZ, Precision, Op Amp, 600kHz, 8-Pin CDIP

OP77EZ Analog Devices , Precision, Op Amp, 600kHz, 8-Pin CDIP
Analog Devices

Product Information

Typical Dual Supply Voltage:
±15V
Typical Input Voltage Noise Density:
10.3nV/√Hz
Typical Gain Bandwidth Product:
600kHz
Dimensions:
10.29 x 7.87 x 4.28mm
Mounting Type:
Through Hole
Typical Slew Rate:
0.3V/µs
Power Supply Type:
Dual
Number of Channels per Chip:
1
Rail to Rail:
No
Maximum Operating Frequency:
1000 kHz
Height:
4.28mm
Width:
7.87mm
Length:
10.29mm
Package Type:
CDIP
Minimum Operating Temperature:
-25 °C
Amplifier Type:
Precision
Typical Voltage Gain:
121.6 dB
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Checking for live stock

This is Precision Op Amp 600kHz 8-Pin CDIP manufactured by Analog Devices. The manufacturer part number is OP77EZ. While ±15v is the typical dual supply voltage. Featuring a 10.3nv/√hz of typical input voltage noise density. Features 600khz typical gain bandwidth. The given dimensions of the product include 10.29 x 7.87 x 4.28mm. The product is available in through hole configuration. Furthermore, it has a typical 0.3v/µs of slew rate. It is a type of dual power supply. It comprises 1 channels per chip. Rail to rail options include no. It carries 1000 khz of maximum operating frequency. In addition, the height is 4.28mm. Furthermore, the product is 7.87mm wide. Its accurate length is 10.29mm. The package is a sort of cdip. Whereas, the minimum operating temperature of the product is -25 °c. It is a sort of a precision amplifier. Furthermore, its typical voltage gain includes 121.6 db. It has a maximum operating temperature of +85 °c. It contains 8 pins.

pdf icon
OP77, Next Generation OP07 Ultralow Offset Voltage Operational Amplifier(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
