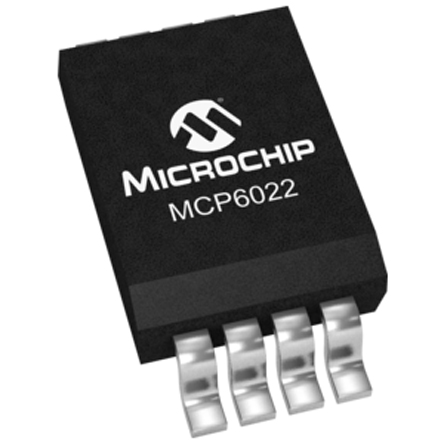

Microchip MCP6022-E/SN, Precision, Op Amp, RRIO, 10MHz, 2.5 → 5.5 V, 8-Pin SOIC

MCP6022-E-SN Microchip MCP6022-E/SN, Precision, Op Amp, RRIO, 10MHz, 2.5 → 5.5 V, 8-Pin SOIC
Microchip

Product Information

Typical Input Voltage Noise Density:
8.7nV/√Hz
Typical Gain Bandwidth Product:
10MHz
Dimensions:
4.9 x 3.9 x 1.25mm
Mounting Type:
Surface Mount
Typical Slew Rate:
7V/µs
Power Supply Type:
Single
Number of Channels per Chip:
2
Rail to Rail:
Rail to Rail Input/Output
Height:
1.25mm
Typical Single Supply Voltage:
2.5 → 5.5 V
Width:
3.9mm
Length:
4.9mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Precision
Typical Voltage Gain:
110 dB
Maximum Operating Temperature:
+125 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Precision Op Amp RRIO 10MHz 2.5 → 5.5 V 8-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP6022-E/SN. Featuring a 8.7nv/√hz of typical input voltage noise density. Features 10mhz typical gain bandwidth. The given dimensions of the product include 4.9 x 3.9 x 1.25mm. The product is available in surface mount configuration. Furthermore, it has a typical 7v/µs of slew rate. It is a type of single power supply. It comprises 2 channels per chip. Rail to rail options include rail to rail input/output. In addition, the height is 1.25mm. It has a typical single supply voltage of 2.5 → 5.5 v. Furthermore, the product is 3.9mm wide. Its accurate length is 4.9mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a precision amplifier. Furthermore, its typical voltage gain includes 110 db. It has a maximum operating temperature of +125 °c. It contains 8 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
