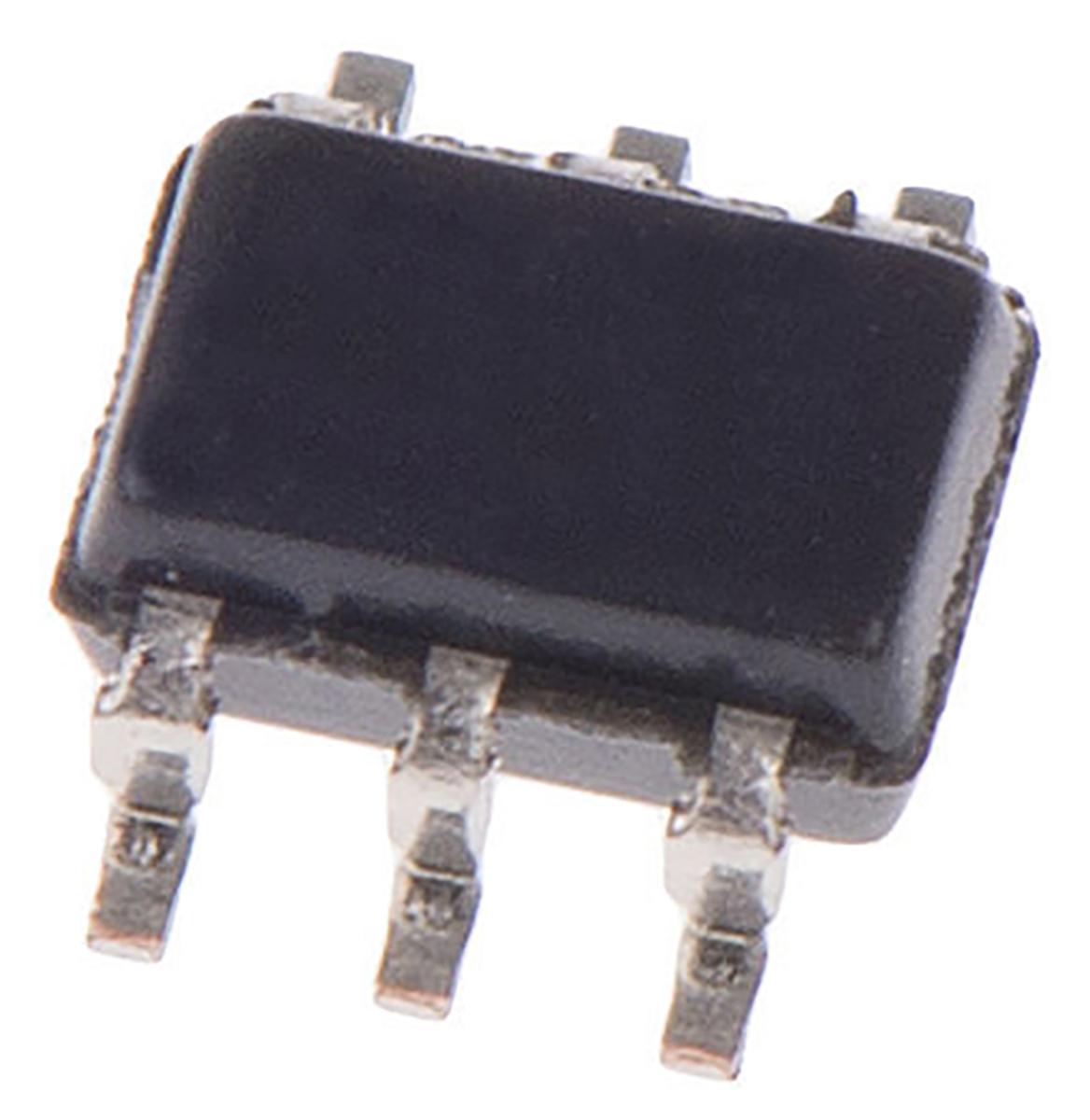

Analog Devices ADA4807-1AKSZ-R2, Low Noise, Op Amp, RRIO, 180MHz, 3 → 10 V, 6-Pin SC-70

ADA4807-1AKSZ-R2 Analog Devices , Low Noise, Op Amp, RRIO, 180MHz, 3 → 10 V, 6-Pin SC-70
ADA4807-1AKSZ-R2
Analog Devices

Product Information

Dimensions:
2.2 x 1.35 x 1mm
Typical Slew Rate:
250V/µs
Rail to Rail:
Rail to Rail Input/Output
Width:
1.35mm
Input Offset Current:
130nA
Power Supply Type:
Dual, Single
Number of Channels per Chip:
1
Maximum Operating Frequency:
100 kHz
Package Type:
SC-70
Typical Voltage Gain:
130 dB
Maximum Operating Temperature:
+125 °C
Typical Gain Bandwidth Product:
180MHz
Length:
2.2mm
Pin Count:
6
Offset Voltage:
±750µV
Typical Dual Supply Voltage:
±1.5 → ±5V
Typical Input Voltage Noise Density:
5.8nV/√Hz
Mounting Type:
Surface Mount
Output Current:
60 mA
Input Voltage Range:
2.7 → 11 V
Typical Single Supply Voltage:
3 → 10 V
Height:
1mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Low Noise
Maximum Input Voltage:
11 V
Minimum Input Voltage:
2.7 V
RoHs Compliant
Checking for live stock

This is Low Noise Op Amp RRIO 180MHz 3 → 10 V 6-Pin SC-70 manufactured by Analog Devices. The manufacturer part number is ADA4807-1AKSZ-R2. The given dimensions of the product include 2.2 x 1.35 x 1mm. Furthermore, it has a typical 250v/µs of slew rate. Rail to rail options include rail to rail input/output. Furthermore, the product is 1.35mm wide. In addition, it exhibits an input 130na offset current . It is a type of dual, single power supply. It comprises 1 channels per chip. It carries 100 khz of maximum operating frequency. The package is a sort of sc-70. Furthermore, its typical voltage gain includes 130 db. It has a maximum operating temperature of +125 °c. Features 180mhz typical gain bandwidth. Its accurate length is 2.2mm. It contains 6 pins. Its offset voltage is approximately ±750µv . While ±1.5 → ±5v is the typical dual supply voltage. Featuring a 5.8nv/√hz of typical input voltage noise density. The product is available in surface mount configuration. It carries 60 ma output current. It has 2.7 → 11 v of input voltage range. It has a typical single supply voltage of 3 → 10 v. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a low noise amplifier. 11 v is the maximum voltage of the bespoke product. The product has 2.7 v of minimum input voltage.
