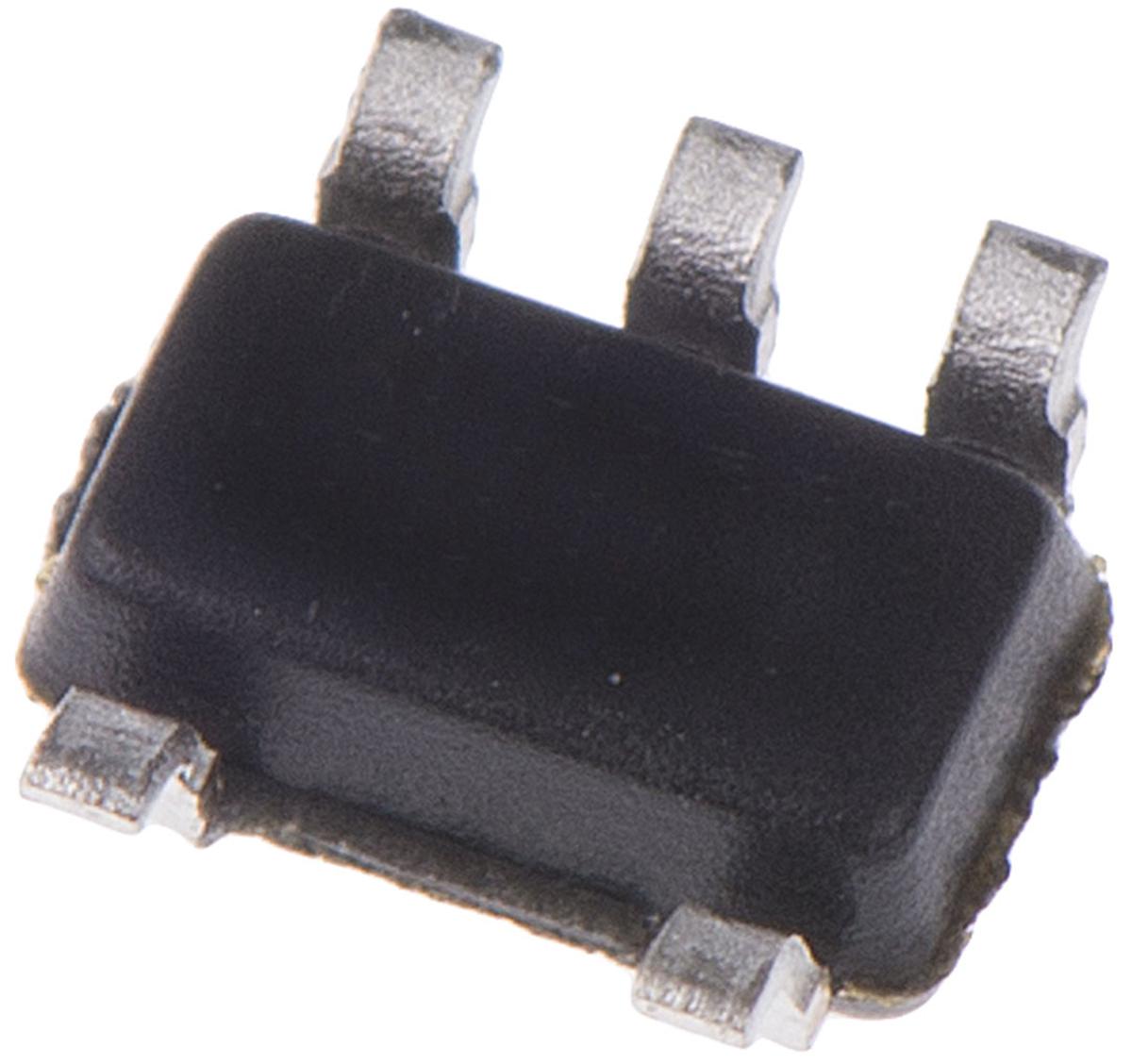

Analog Devices AD8601WDRTZ-REEL7 Precision Op Amp, 8.4MHz CMOS, Rail to Rail, 2.7 → 5.5 V, 5-Pin SOT-23

AD8601WDRTZ-REEL7 Analog Devices Precision Op Amp, 8.4MHz CMOS, Rail to Rail, 2.7 → 5.5 V, 5-Pin SOT-23
AD8601WDRTZ-REEL7
Analog Devices

Product Information

Typical Input Voltage Noise Density:
33nV/√Hz
Typical Gain Bandwidth Product:
8.4MHz
Dimensions:
3 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Typical Slew Rate:
6V/µs
Power Supply Type:
Single
Number of Channels per Chip:
1
Rail to Rail:
Rail to Rail Input/Output
Maximum Operating Frequency:
10 kHz
Height:
1.3mm
Typical Single Supply Voltage:
2.7 → 5.5 V
Width:
1.7mm
Length:
3mm
Package Type:
SOT-23
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Precision
Typical Voltage Gain:
100 dB
Maximum Operating Temperature:
+125 °C
Pin Count:
5
RoHs Compliant
Checking for live stock

This is Precision Op Amp 8.4MHz CMOS Rail to Rail 2.7 → 5.5 V 5-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is AD8601WDRTZ-REEL7. Featuring a 33nv/√hz of typical input voltage noise density. Features 8.4mhz typical gain bandwidth. The given dimensions of the product include 3 x 1.7 x 1.3mm. The product is available in surface mount configuration. Furthermore, it has a typical 6v/µs of slew rate. It is a type of single power supply. It comprises 1 channels per chip. Rail to rail options include rail to rail input/output. It carries 10 khz of maximum operating frequency. In addition, the height is 1.3mm. It has a typical single supply voltage of 2.7 → 5.5 v. Furthermore, the product is 1.7mm wide. Its accurate length is 3mm. The package is a sort of sot-23. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a precision amplifier. Furthermore, its typical voltage gain includes 100 db. It has a maximum operating temperature of +125 °c. It contains 5 pins.

pdf icon
AD8601/AD8602/AD8604, Precision CMOS, Single-Supply, Rail-to-Rail, Input/Output Wideband Operational Amplifiers(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
