Microchip MCP6024-I/SL, Precision, Op Amp, RRIO, 10MHz, 14-Pin SOIC

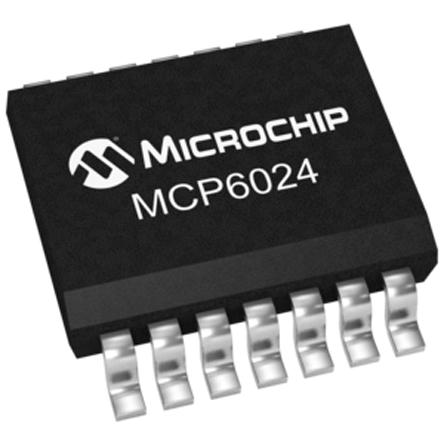

MCP6024-I-SL Microchip MCP6024-I/SL, Precision, Op Amp, RRIO, 10MHz, 14-Pin SOIC
Microchip

Product Information

Dimensions:
8.65 x 3.9 x 1.5mm
Typical Slew Rate:
7V/µs
Rail to Rail:
Rail to Rail Input/Output
Width:
3.9mm
Input Offset Current:
1pA
Power Supply Type:
Single
Number of Channels per Chip:
4
Maximum Operating Frequency:
10 kHz
Package Type:
SOIC
Typical Voltage Gain:
110 dB
Maximum Operating Temperature:
+85 °C
Typical Gain Bandwidth Product:
10MHz
Length:
8.65mm
Pin Count:
14
Offset Voltage:
±500µV
Typical Input Voltage Noise Density:
8.7nV/√Hz
Mounting Type:
Surface Mount
Output Current:
±30 (Short Circuit) mA
Input Voltage Range:
2.5 → 5.5 V
Height:
1.5mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Precision
Maximum Input Voltage:
5.5 V
Minimum Input Voltage:
2.5 V
RoHs Compliant
Checking for live stock

This is Precision Op Amp RRIO 10MHz 14-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP6024-I/SL. The given dimensions of the product include 8.65 x 3.9 x 1.5mm. Furthermore, it has a typical 7v/µs of slew rate. Rail to rail options include rail to rail input/output. Furthermore, the product is 3.9mm wide. In addition, it exhibits an input 1pa offset current . It is a type of single power supply. It comprises 4 channels per chip. It carries 10 khz of maximum operating frequency. The package is a sort of soic. Furthermore, its typical voltage gain includes 110 db. It has a maximum operating temperature of +85 °c. Features 10mhz typical gain bandwidth. Its accurate length is 8.65mm. It contains 14 pins. Its offset voltage is approximately ±500µv . Featuring a 8.7nv/√hz of typical input voltage noise density. The product is available in surface mount configuration. It carries ±30 (short circuit) ma output current. It has 2.5 → 5.5 v of input voltage range. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a precision amplifier. 5.5 v is the maximum voltage of the bespoke product. The product has 2.5 v of minimum input voltage.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
