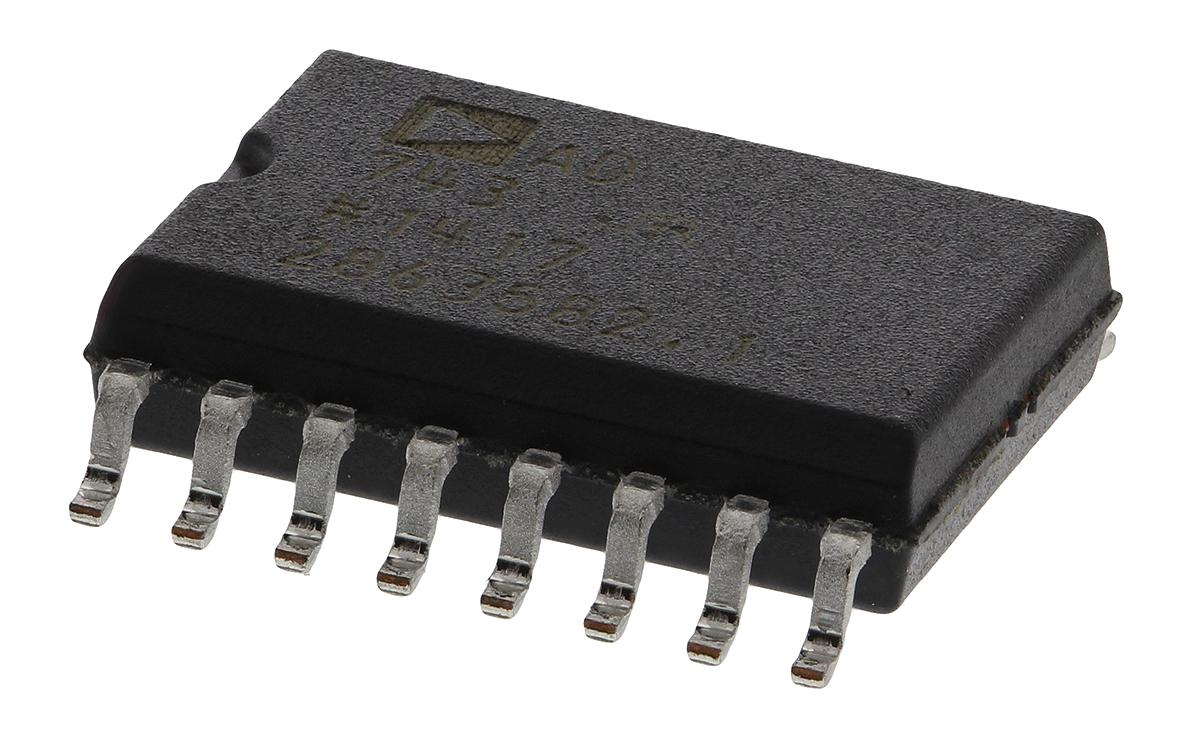

Analog Devices AD743JRZ-16, Op Amp, 4.5MHz, 16-Pin SOIC W

AD743JRZ-16 Analog Devices , Op Amp, 4.5MHz, 16-Pin SOIC W
AD743JRZ-16
Analog Devices

Product Information

Typical Dual Supply Voltage:
±15V
Typical Gain Bandwidth Product:
4.5MHz
Dimensions:
10.5 x 7.6 x 2.35mm
Mounting Type:
Surface Mount
Typical Slew Rate:
2.8V/µs
Power Supply Type:
Dual
Number of Channels per Chip:
1
Rail to Rail:
No
Height:
2.35mm
Width:
7.6mm
Length:
10.5mm
Package Type:
SOIC W
Minimum Operating Temperature:
0 °C
Typical Voltage Gain:
126 dB
Maximum Operating Temperature:
+70 °C
Pin Count:
16
RoHs Compliant
Checking for live stock

This is Op Amp 4.5MHz 16-Pin SOIC W manufactured by Analog Devices. The manufacturer part number is AD743JRZ-16. While ±15v is the typical dual supply voltage. Features 4.5mhz typical gain bandwidth. The given dimensions of the product include 10.5 x 7.6 x 2.35mm. The product is available in surface mount configuration. Furthermore, it has a typical 2.8v/µs of slew rate. It is a type of dual power supply. It comprises 1 channels per chip. Rail to rail options include no. In addition, the height is 2.35mm. Furthermore, the product is 7.6mm wide. Its accurate length is 10.5mm. The package is a sort of soic w. Whereas, the minimum operating temperature of the product is 0 °c. Furthermore, its typical voltage gain includes 126 db. It has a maximum operating temperature of +70 °c. It contains 16 pins.

pdf icon
OP Amp Single GP 18V 16-Pin SOIC(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
