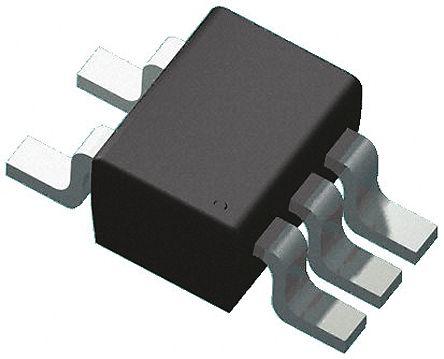

EXAR XR1009IST5X, Op Amp, RRO, 20MHz, 2.5 → 5.5 V, 5-Pin TSOT-23

XR1009IST5X EXAR , Op Amp, RRO, 20MHz, 2.5 → 5.5 V, 5-Pin TSOT-23
EXAR

Product Information

Typical Input Voltage Noise Density:
23nV/√Hz
Typical Gain Bandwidth Product:
20MHz
Dimensions:
2.9 x 1.6 x 0.78mm
Mounting Type:
Surface Mount
Typical Slew Rate:
27V/µs
Power Supply Type:
Single
Number of Channels per Chip:
1
Rail to Rail:
Rail to Rail Output
Height:
0.78mm
Typical Single Supply Voltage:
2.5 → 5.5 V
Width:
1.6mm
Length:
2.9mm
Package Type:
TSOT-23
Minimum Operating Temperature:
-40 °C
Typical Voltage Gain:
62 dB
Maximum Operating Temperature:
+125 °C
Pin Count:
5
RoHs Compliant
Checking for live stock

This is Op Amp RRO 20MHz 2.5 → 5.5 V 5-Pin TSOT-23 manufactured by EXAR. The manufacturer part number is XR1009IST5X. Featuring a 23nv/√hz of typical input voltage noise density. Features 20mhz typical gain bandwidth. The given dimensions of the product include 2.9 x 1.6 x 0.78mm. The product is available in surface mount configuration. Furthermore, it has a typical 27v/µs of slew rate. It is a type of single power supply. It comprises 1 channels per chip. Rail to rail options include rail to rail output. In addition, the height is 0.78mm. It has a typical single supply voltage of 2.5 → 5.5 v. Furthermore, the product is 1.6mm wide. Its accurate length is 2.9mm. The package is a sort of tsot-23. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, its typical voltage gain includes 62 db. It has a maximum operating temperature of +125 °c. It contains 5 pins.

pdf icon
XR1009, XR2009 Rail to Rail Amplifiers Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
