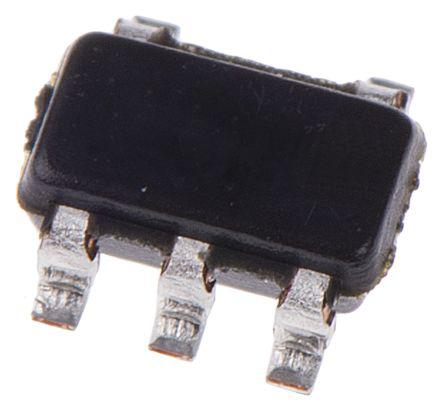

Maxim MAX4230AXK-T, High Speed, Op Amp, RRIO, 10MHz, 2.7 → 5.5 V, 5-Pin SC-70

MAX4230AXK-T Maxim , High Speed, Op Amp, RRIO, 10MHz, 2.7 → 5.5 V, 5-Pin SC-70
MAX4230AXK-T
MAX4230AXK-T
ET13795208
ET13795208
Op Amps
Maxim

Product Information

Typical Dual Supply Voltage:
±1.35 → ±2.5V
Typical Gain Bandwidth Product:
10MHz
Dimensions:
2.15 x 1.35 x 1mm
Mounting Type:
Surface Mount
Typical Slew Rate:
10V/µs
Power Supply Type:
Dual, Single
Number of Channels per Chip:
1
Rail to Rail:
Rail to Rail Input/Output
Height:
1mm
Typical Single Supply Voltage:
2.7 → 5.5 V
Width:
1.35mm
Length:
2.15mm
Typical Input Voltage Noise Density:
15nV/√Hz
Package Type:
SC-70
Minimum Operating Temperature:
-40 °C
Amplifier Type:
High Speed
Typical Voltage Gain:
76 dB
Maximum Operating Temperature:
+125 °C
Pin Count:
5
RoHs Compliant
Checking for live stock

This is High Speed Op Amp RRIO 10MHz 2.7 → 5.5 V 5-Pin SC-70 manufactured by Maxim. The manufacturer part number is MAX4230AXK-T. While ±1.35 → ±2.5v is the typical dual supply voltage. Features 10mhz typical gain bandwidth. The given dimensions of the product include 2.15 x 1.35 x 1mm. The product is available in surface mount configuration. Furthermore, it has a typical 10v/µs of slew rate. It is a type of dual, single power supply. It comprises 1 channels per chip. Rail to rail options include rail to rail input/output. In addition, the height is 1mm. It has a typical single supply voltage of 2.7 → 5.5 v. Furthermore, the product is 1.35mm wide. Its accurate length is 2.15mm. Featuring a 15nv/√hz of typical input voltage noise density. The package is a sort of sc-70. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a high speed amplifier. Furthermore, its typical voltage gain includes 76 db. It has a maximum operating temperature of +125 °c. It contains 5 pins.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
MAX4230–MAX4234 High-Output-Drive, 10MHz, 10V/μs, Rail-to-Rail I/O Op Amps with Shutdown in SC70 Data Sheet(Technical Reference)
