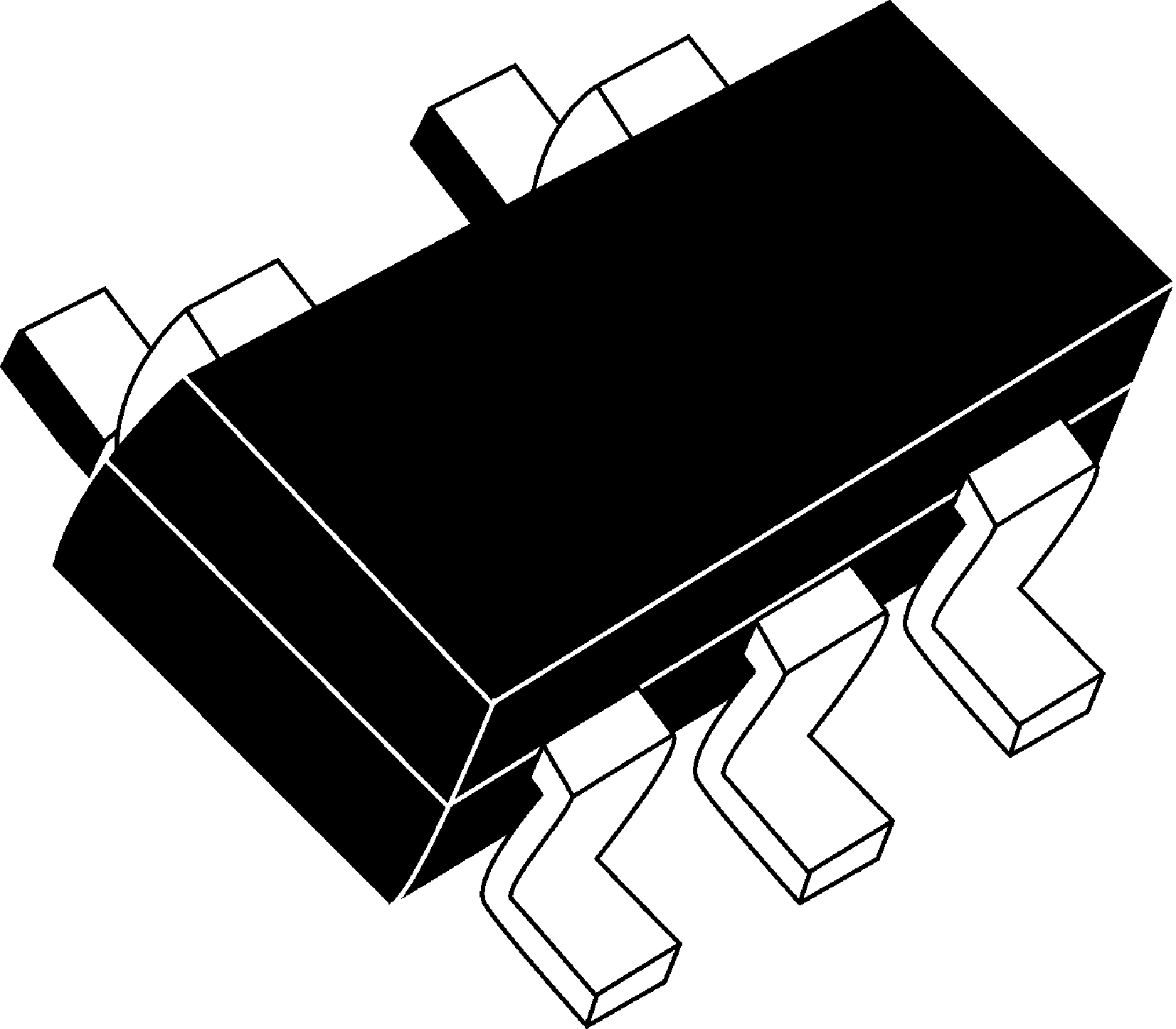

DiodesZetex TLV271IW5-7 CMOS Op Amp, 1.9MHz Rail-Rail, 2.7 → 16 V, 5-Pin SOT-25

TLV271IW5-7 DiodesZetex CMOS Op Amp, 1.9MHz Rail-Rail, 2.7 → 16 V, 5-Pin SOT-25
DiodesZetex

Product Information

Typical Dual Supply Voltage:
±5V
Typical Input Voltage Noise Density:
35nV/√Hz
Typical Gain Bandwidth Product:
1.9MHz
Dimensions:
3.1 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Typical Slew Rate:
2.2V/µs
Power Supply Type:
Dual, Single
Number of Channels per Chip:
1
Rail to Rail:
Rail to Rail Output
Maximum Operating Frequency:
10 kHz
Height:
1.3mm
Typical Single Supply Voltage:
2.7 → 16 V
Width:
1.7mm
Length:
3.1mm
Package Type:
SOT-25
Minimum Operating Temperature:
-40 °C
Amplifier Type:
CMOS
Typical Voltage Gain:
115 dB
Maximum Operating Temperature:
+125 °C
Pin Count:
5
RoHs Compliant
Checking for live stock

This is CMOS Op Amp 1.9MHz Rail-Rail 2.7 → 16 V 5-Pin SOT-25 manufactured by DiodesZetex. The manufacturer part number is TLV271IW5-7. While ±5v is the typical dual supply voltage. Featuring a 35nv/√hz of typical input voltage noise density. Features 1.9mhz typical gain bandwidth. The given dimensions of the product include 3.1 x 1.7 x 1.3mm. The product is available in surface mount configuration. Furthermore, it has a typical 2.2v/µs of slew rate. It is a type of dual, single power supply. It comprises 1 channels per chip. Rail to rail options include rail to rail output. It carries 10 khz of maximum operating frequency. In addition, the height is 1.3mm. It has a typical single supply voltage of 2.7 → 16 v. Furthermore, the product is 1.7mm wide. Its accurate length is 3.1mm. The package is a sort of sot-25. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a cmos amplifier. Furthermore, its typical voltage gain includes 115 db. It has a maximum operating temperature of +125 °c. It contains 5 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search TLV271IW5-7 on website for other similar products.
We accept all major payment methods for all products including ET10002042. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with TLV271IW5-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Op Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DiodesZetex TLV271IW5-7 CMOS Op Amp, 1.9MHz Rail-Rail, 2.7 → 16 V, 5-Pin SOT-25. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex TLV271IW5-7 CMOS Op Amp, 1.9MHz Rail-Rail, 2.7 → 16 V, 5-Pin SOT-25.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10002042 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10002042.
Yes. We ship TLV271IW5-7 Internationally to many countries around the world.
