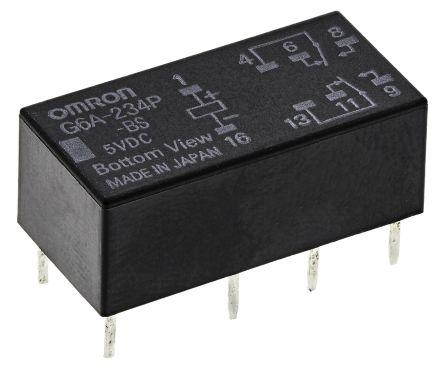

Omron DPDT PCB Mount Non-Latching Relay, 5V dc Coil

G6A-234P-BS-5DC Omron DPDT PCB Mount Non-Latching Relay, 5V dc Coil
Omron

Product Information

Dimensions:
20.2 x 10.1 x 8.4mm
Mounting Type:
PCB Mount
Operating Temperature Range:
-40 → +70°C
Minimum Operating Temperature:
-40°C
Coil Voltage:
5 V dc
Length:
20.2mm
Height:
8.4mm
Depth:
10.1mm
Maximum Switching Power DC:
60 W
Maximum Switching Power AC:
125 VA
Contact Configuration:
DPDT
Terminal Type:
Through Hole
Contact Material:
Gold Plated
Maximum Operating Temperature:
+70°C
CAD Drawing:
3D CAD Model
Coil Resistance:
89 Ω
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Non-Latching Relay 5V dc Coil manufactured by Omron. The manufacturer part number is G6A-234P-BS 5DC. The given dimensions of the product include 20.2 x 10.1 x 8.4mm. The product is available in pcb mount configuration. The product has -40 → +70°c of operating temperature range. Whereas, the minimum operating temperature of the product is -40°c. The coil voltage of the product is 5 v dc. Its accurate length is 20.2mm. In addition, the height is 8.4mm. The product comes in 10.1mm depth. It bears a maximum 60 w of DC switching power. It also features an AC switching power of 125 va. The contact is equipped with dpdt configuration. The terminal is a through hole type. The product is made from sturdy gold plated materials. It has a maximum operating temperature of +70°c. It has 3d cad model CAD drawing . It holds up to 89 ω coil resistance.

pdf icon
G6A-Series Omron PCB Relays(Technical Reference)
