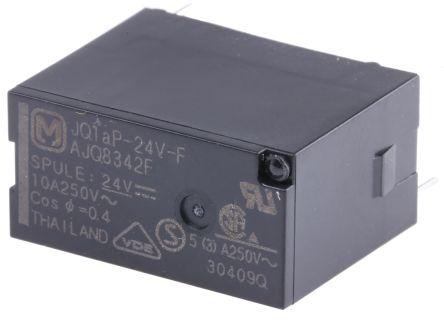

Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil

JQ1AP24 Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil
Panasonic

Product Information

Mounting Type:
PCB Mount
Coil Power:
200mW
Coil Voltage:
24 V dc
Length:
20mm
Height:
16mm
Depth:
10mm
Maximum Switching Power DC:
150 W
Maximum Switching Power AC:
1.25 kVA
Isolation Coil To Contact:
4kV rms
Contact Configuration:
SPNO
Terminal Type:
Through Hole
Coil Resistance:
2.88 kΩ
RoHs Compliant
Checking for live stock

This is SPNO Non-Latching Relay PCB Mount 24V dc Coil manufactured by Panasonic. The manufacturer part number is JQ1AP24. The product is available in pcb mount configuration. Robust coil power of 200mw. The coil voltage of the product is 24 v dc. Its accurate length is 20mm. In addition, the height is 16mm. The product comes in 10mm depth. It bears a maximum 150 w of DC switching power. It also features an AC switching power of 1.25 kva. The product has 4kv rms isolation coil to contact. The contact is equipped with spno configuration. The terminal is a through hole type. It holds up to 2.88 kω coil resistance.

pdf icon
JQ Relays Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship JQ1AP24 Internationally to many countries around the world.
Yes. You can also search JQ1AP24 on website for other similar products.
We accept all major payment methods for all products including ET14054091. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14054091 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14054091.
You can order Panasonic brand products with JQ1AP24 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Non-Latching Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil. You can also check on our website or by contacting our customer support team for further order details on Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil.
