Name: JTN1STMPF12, Panasonic
Brand: Panasonic
SKU: ET14000539
Price: 2.92 GBP
Availability: Discontinued

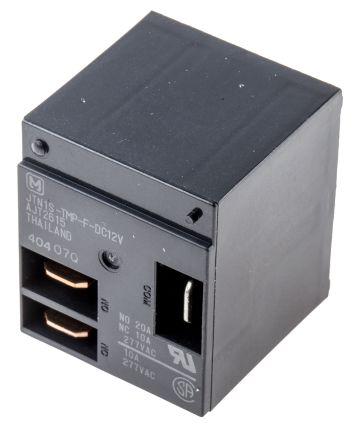

JTN1STMPF12 Panasonic SPDT Non-Latching Relay PCB Mount, 12V dc Coil, 20 A

(0)

Product Information

Mounting Type:

PCB Mount

Coil Power:

800mW

Switching Current:

20A

Coil Voltage:

12V dc

Length:

27.4mm

Height:

27.9mm

Depth:

32.2mm

Maximum Switching Voltage AC:

277V ac

Maximum Switching Power AC:

5.54 kVA

Isolation Coil To Contact:

2.5kV rms

Contact Configuration:

SPDT

Terminal Type:

Through Hole

Checking for live stock

This is SPDT Non-Latching Relay PCB Mount 12V dc Coil 20 A manufactured by Panasonic. The manufacturer part number is JTN1STMPF12. The product is available in pcb mount configuration. Robust coil power of 800mw. It is integrated with 20a switching current. The coil voltage of the product is 12v dc. Its accurate length is 27.4mm. In addition, the height is 27.9mm. The product comes in 32.2mm depth. It has a maximum AC switching voltage of 277v ac. It also features an AC switching power of 5.54 kva. The product has 2.5kv rms isolation coil to contact. The contact is equipped with spdt configuration. The terminal is a through hole type. It holds up to 180ω coil resistance.

JT-N Relays Data Sheet(Technical Reference)
