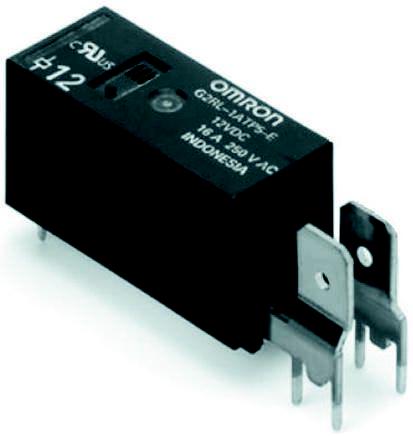

Omron SPNO PCB Mount Non-Latching Relay, 12V dc Coil

G2RL-1ATP5-E-12DC Omron SPNO PCB Mount Non-Latching Relay, 12V dc Coil
Omron

Product Information

Dimensions:
40.4 x 12.6 x 16mm
Coil Voltage:
12 V dc
Application:
Power
Coil Resistance:
360 Ω
Life:
50000 (Electrical) cycles, 20000000 (Mechanical) cycles
Coil Power:
400mW
Isolation Coil To Contact:
5kV ac
Maximum Operating Temperature:
+105°C
Terminal Type:
Through Hole
Maximum Switching Current AC:
16 A
Operating Temperature Range:
-40 → +105°C
Contact Configuration:
SPNO
Depth:
12.6mm
Special Features:
Class B Coil Insulation, Flux Resistant
Mounting Type:
PCB Mount
Length:
40.4mm
Height:
16.5mm
Maximum Switching Voltage AC:
440V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
4 kVA
CAD Drawing:
3D CAD Model
Contact Material:
Silver Alloy
RoHs Compliant
Checking for live stock

This is SPNO PCB Mount Non-Latching Relay 12V dc Coil manufactured by Omron. The manufacturer part number is G2RL-1ATP5-E 12DC. The given dimensions of the product include 40.4 x 12.6 x 16mm. The coil voltage of the product is 12 v dc. Applications Information involves power. It holds up to 360 ω coil resistance. It is capable of doing 50000 (electrical) cycles, 20000000 (mechanical) cycles in a lifetime . Robust coil power of 400mw. The product has 5kv ac isolation coil to contact. It has a maximum operating temperature of +105°c. The terminal is a through hole type. It has a maximum 16 a switching current AC . The product has -40 → +105°c of operating temperature range. The contact is equipped with spno configuration. The product comes in 12.6mm depth. The product also provides special features, such as class b coil insulation, flux resistant. The product is available in pcb mount configuration. Its accurate length is 40.4mm. In addition, the height is 16.5mm. It has a maximum AC switching voltage of 440v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 4 kva. It has 3d cad model CAD drawing . The product is made from sturdy silver alloy materials.

pdf icon
VDE 40015012(Technical Reference)
pdf icon
PCB Relay G2RL Data Sheet(Technical Reference)
