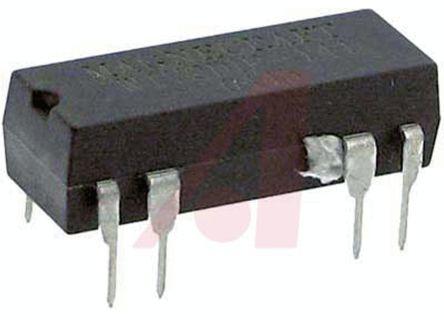

Schneider Electric SPDT PCB Mount Non-Latching Relay, 12V dc Coil, 250 mA

W172DIP-145 Schneider Electric SPDT PCB Mount Non-Latching Relay, 12V dc Coil, 250 mA
Schneider Electric

Product Information

Dimensions:
20.14 x 7.34 x 7.62mm
Coil Voltage:
12 V dc
Application:
Power
Coil Resistance:
1 kΩ
Life:
50000000 Operations
Coil Power:
290mW
Maximum Switching Voltage DC:
100V
Isolation Coil To Contact:
1kV ac
Maximum Operating Temperature:
+55°C
Terminal Type:
Plug In
Maximum Switching Current AC:
250 mA
Operating Temperature Range:
-40 → +55°C
Contact Configuration:
SPDT
Depth:
7.34mm
Mounting Type:
PCB Mount
Length:
20.14mm
Height:
7.62mm
Maximum Switching Current DC:
250 mA
Maximum Switching Voltage AC:
60V
Minimum Operating Temperature:
-40°C
Contact Material:
Rhodium
RoHs Compliant
Checking for live stock

This is SPDT PCB Mount Non-Latching Relay 12V dc Coil 250 mA manufactured by Schneider Electric. The manufacturer part number is W172DIP-145. The given dimensions of the product include 20.14 x 7.34 x 7.62mm. The coil voltage of the product is 12 v dc. Applications Information involves power. It holds up to 1 kω coil resistance. It is capable of doing 50000000 operations in a lifetime . Robust coil power of 290mw. While it carries 100v of maximum DC switching voltage. The product has 1kv ac isolation coil to contact. It has a maximum operating temperature of +55°c. The terminal is a plug in type. It has a maximum 250 ma switching current AC . The product has -40 → +55°c of operating temperature range. The contact is equipped with spdt configuration. The product comes in 7.34mm depth. The product is available in pcb mount configuration. Its accurate length is 20.14mm. In addition, the height is 7.62mm. It has a minimum 250 ma DC switching current . It has a maximum AC switching voltage of 60v. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy rhodium materials.
