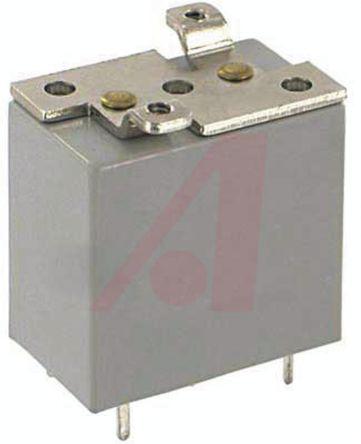

Schneider Electric SPDT PCB Mount Non-Latching Relay, 5V dc Coil, 15 A

49R1C4VG-5DC-STO Schneider Electric SPDT PCB Mount Non-Latching Relay, 5V dc Coil, 15 A
Schneider Electric

Product Information

Dimensions:
31.7 x 19.3 x 29.1mm
Coil Voltage:
5 V dc
Application:
Industrial Equipment
Coil Resistance:
235 Ω
Life:
100000 Operations
Coil Power:
110mW
Maximum Switching Voltage DC:
28V
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+55°C
Terminal Type:
Plug In
Maximum Switching Current AC:
15 A
Operating Temperature Range:
-40 → +55°C
Contact Configuration:
SPDT
Depth:
19.3mm
Mounting Type:
PCB Mount
Length:
31.7mm
Height:
29.1mm
Maximum Switching Current DC:
15 A
Maximum Switching Voltage AC:
277V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
480 VA
Contact Material:
Silver Alloy
Checking for live stock

This is SPDT PCB Mount Non-Latching Relay 5V dc Coil 15 A manufactured by Schneider Electric. The manufacturer part number is 49R1C4VG-5DC-STO. The given dimensions of the product include 31.7 x 19.3 x 29.1mm. The coil voltage of the product is 5 v dc. Applications Information involves industrial equipment. It holds up to 235 ω coil resistance. It is capable of doing 100000 operations in a lifetime . Robust coil power of 110mw. While it carries 28v of maximum DC switching voltage. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +55°c. The terminal is a plug in type. It has a maximum 15 a switching current AC . The product has -40 → +55°c of operating temperature range. The contact is equipped with spdt configuration. The product comes in 19.3mm depth. The product is available in pcb mount configuration. Its accurate length is 31.7mm. In addition, the height is 29.1mm. It has a minimum 15 a DC switching current . It has a maximum AC switching voltage of 277v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 480 va. The product is made from sturdy silver alloy materials.
