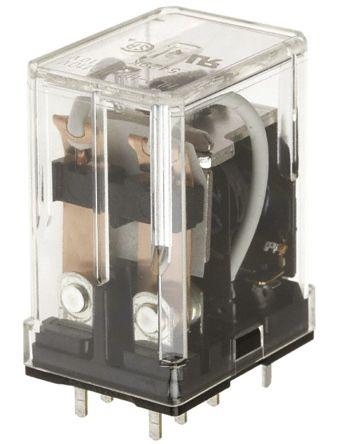

Panasonic DPDT PCB Mount Non-Latching Relay, 115V ac Coil, 10 A

HL2-HP-AC115V-F Panasonic DPDT PCB Mount Non-Latching Relay, 115V ac Coil, 10 A
Panasonic

Product Information

Life:
500000 Operations
Dimensions:
27.2 x 20.8 x 35.4mm
Mounting Type:
PCB Mount
Operating Temperature Range:
-50 → +70°C
Maximum Switching Current AC:
10 A
Coil Voltage:
115 V ac
Depth:
20.8mm
Height:
35.4mm
Maximum Switching Current DC:
10 A
Application:
Automotive
Length:
27.2mm
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-50°C
Isolation Coil To Contact:
2kV rms
Contact Configuration:
DPDT
Maximum Operating Temperature:
+70°C
Contact Material:
Silver Alloy
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Non-Latching Relay 115V ac Coil 10 A manufactured by Panasonic. The manufacturer part number is HL2-HP-AC115V-F. It is capable of doing 500000 operations in a lifetime . The given dimensions of the product include 27.2 x 20.8 x 35.4mm. The product is available in pcb mount configuration. The product has -50 → +70°c of operating temperature range. It has a maximum 10 a switching current AC . The coil voltage of the product is 115 v ac. The product comes in 20.8mm depth. In addition, the height is 35.4mm. It has a minimum 10 a DC switching current . Applications Information involves automotive. Its accurate length is 27.2mm. It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -50°c. The product has 2kv rms isolation coil to contact. The contact is equipped with dpdt configuration. It has a maximum operating temperature of +70°c. The product is made from sturdy silver alloy materials.

pdf icon
HL Relays Data Sheet(Technical Reference)
