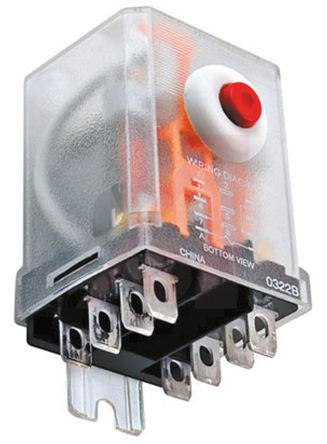

Schneider Electric SPDT Flange Mount Non-Latching Relay, 12V dc Coil, 13 A

389FXAXC1-12D Schneider Electric SPDT Flange Mount Non-Latching Relay, 12V dc Coil, 13 A
Schneider Electric

Product Information

Dimensions:
38.89 x 73.82 x 35.72mm
Coil Voltage:
12 V dc
Application:
General Purpose, Power
Coil Resistance:
100 Ω
Life:
100000 (Electrical) Operations, 5000000 (Mechanical) Operations
Coil Power:
1.44W
Maximum Switching Voltage DC:
28V
Maximum Switching Power DC:
500 mW
Isolation Coil To Contact:
2kV ac
Maximum Operating Temperature:
+55°C
Terminal Type:
Quick Connect
Maximum Switching Current AC:
25 A
Operating Temperature Range:
-40 → +55°C
Contact Configuration:
SPDT
Depth:
73.82mm
Mounting Type:
Flange Mount
Length:
38.89mm
Height:
35.72mm
Maximum Switching Current DC:
13 A
Maximum Switching Voltage AC:
600V
Minimum Operating Temperature:
-40°C
Contact Material:
Silver Alloy
Checking for live stock

This is SPDT Flange Mount Non-Latching Relay 12V dc Coil 13 A manufactured by Schneider Electric. The manufacturer part number is 389FXAXC1-12D. The given dimensions of the product include 38.89 x 73.82 x 35.72mm. The coil voltage of the product is 12 v dc. Applications Information involves general purpose, power. It holds up to 100 ω coil resistance. It is capable of doing 100000 (electrical) operations, 5000000 (mechanical) operations in a lifetime . Robust coil power of 1.44w. While it carries 28v of maximum DC switching voltage. It bears a maximum 500 mw of DC switching power. The product has 2kv ac isolation coil to contact. It has a maximum operating temperature of +55°c. The terminal is a quick connect type. It has a maximum 25 a switching current AC . The product has -40 → +55°c of operating temperature range. The contact is equipped with spdt configuration. The product comes in 73.82mm depth. The product is available in flange mount configuration. Its accurate length is 38.89mm. In addition, the height is 35.72mm. It has a minimum 13 a DC switching current . It has a maximum AC switching voltage of 600v. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy silver alloy materials.
