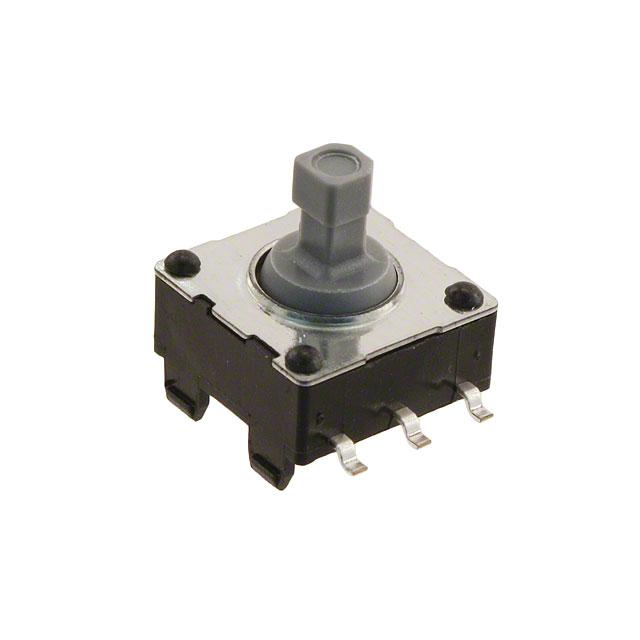

E-Switch JS5208

JS5208 E-Switch
JS5208
E-Switch

Product Information

Operating Force:
280/500gf
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
100,000 Cycles
Termination Style:
Gull Wing
Voltage Rating - DC:
15 V
Operating Temperature:
-20°C ~ 70°C
Functions, Extra:
-
Panel Cutout Dimensions:
-
Mechanical Life:
100,000 Cycles
Type:
Navigation Switch, 2 - Axis
REACH Status:
REACH Unaffected
edacadModel:
JS5208 Models
edacadModelUrl:
/en/models/1739634
Package:
Bulk
Switch Function:
4-Way Directional, Center Select
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Output:
Digital (Mechanical Switch)
Current Rating (Amps):
20mA (DC)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
JS5208
Voltage - Supply:
-
Actuator Type:
Plunger for Cap
Contact Material:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is JS5208. It has a 280/500gf of operating force. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 100,000 cycles. Moreover, it has gull wing terminal style. 15 v of DC voltage rating. The product has -20°c ~ 70°c operating temperature range. The product also provide mechanical stability with 100,000 cycles. It comes in navigation switch, 2 - axis configuration. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a 4-way directional, center select switching function. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product allow the output of digital (mechanical switch). Additionally, the product's output is 20ma (dc). The product is available in surface mount configuration. The product js5208, is a highly preferred choice for users. The product carries plunger for cap actuator. The product is designated with the ear99 code number.

pdf icon
E-Switch RoHS 3 Cert(Environmental Information)
pdf icon
JS5208 Drawing(Datasheets)
pdf icon
JS5208 Series Datasheet(Datasheets)
